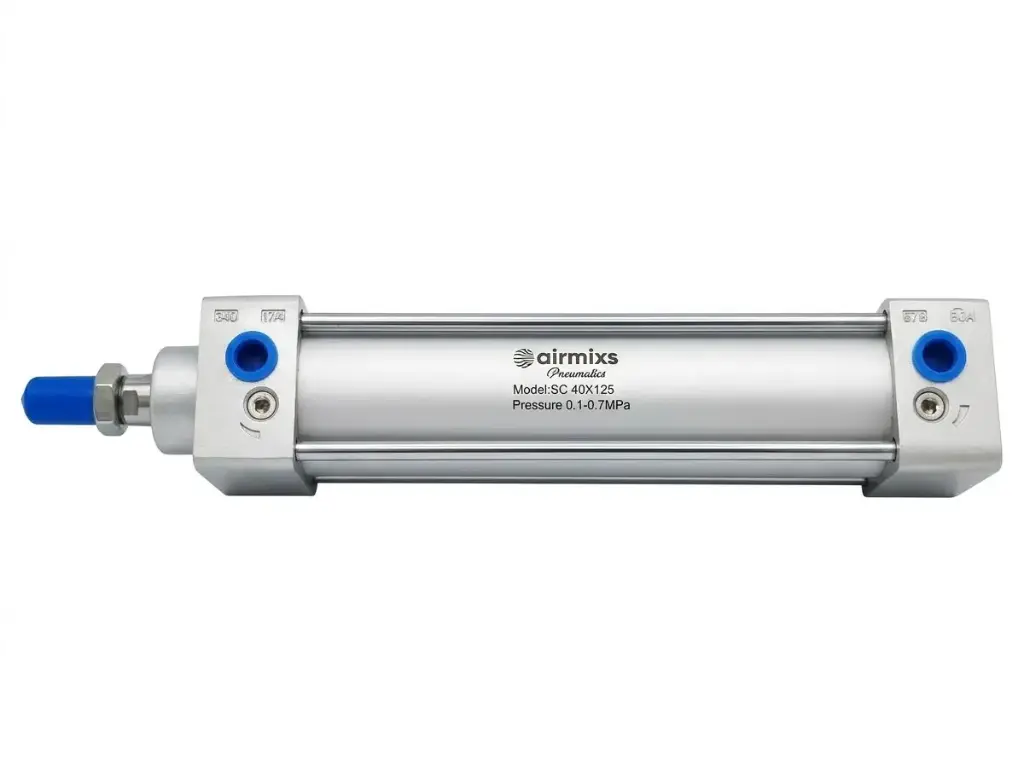

The AIRMIXS SC 40X125 is a rugged, double-acting standard tie-rod pneumatic cylinder designed for high-endurance industrial automation. This "SC" series actuator features a 40mm bore and a 125mm stroke, providing powerful and consistent linear force for pushing, pulling, and lifting applications.
Constructed with high-strength aluminum alloy end caps and a precision-drawn aluminum barrel, the SC 40X125 is built to withstand rigorous duty cycles. The internal piston features a specialized two-way sealing structure with an integrated oil reservoir to ensure smooth movement and a significantly extended service life. To protect your machinery from impact damage, this cylinder comes standard with adjustable air cushioning at both ends, allowing for controlled deceleration of the piston rod.
Feature | Specification |
|---|
Model | SC 40X125 |
Brand | AIRMIXS |
Bore Size | 40 mm |
Stroke Length | 125 mm |
Acting Type | Double Acting |
Medium | Compressed Air (Filtered to 40$\mu$m) |
Operating Pressure | 0.1 – 0.9 MPa (1.0 – 9.0 bar / 145 PSI) |
Proof Pressure | 1.35 MPa (13.5 bar) |
Speed Range | 30 – 800 mm/s |
Cushion Type | Adjustable Air Buffer (Both Ends) |
Port Size | G 1/4" |
Piston Rod Thread | M12 x 1.25 |
Material | Aluminum Alloy (Body), Hard Chromed Steel (Rod) |
