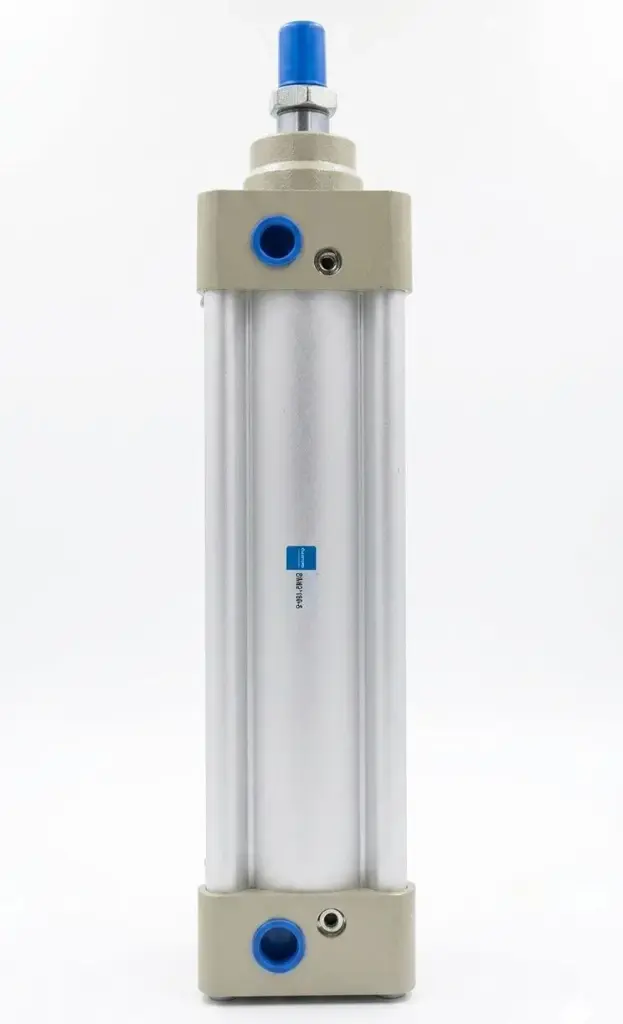

The AIRMIXS SAI63x150-S is a high-performance, double-acting pneumatic cylinder that conforms to the ISO 15552 (formerly ISO 6431) standard. This model features a 63mm bore and a 150mm stroke, utilizing a modern aluminum profile body that eliminates the need for external tie rods. This "clean-line" design not only enhances the aesthetic but also provides superior corrosion resistance and prevents the accumulation of debris.
Equipped with an integrated magnetic piston (indicated by the "-S" suffix), this cylinder is fully compatible with proximity sensors for automated position feedback. The SAI series is engineered for smooth, steady operation thanks to its adjustable pneumatic cushioning at both ends, which protects the cylinder and the attached machinery from high-impact forces at the end of each stroke.
Feature | Specification |
|---|
Model | SAI63x150-S |
Bore Size | 63 mm |
Stroke Length | 150 mm |
Acting Type | Double Acting |
Standard | ISO 15552 / ISO 6431 |
Fluid | Compressed Air (Filtered $\geq$40 $\mu$m) |
Operating Pressure | 0.15 – 1.0 MPa (22 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Temperature Range | -20°C to +70°C |
Cushioning | Adjustable Pneumatic Cushion (Both Ends) |
Piston Magnet | Included (Standard) |
Port Size | G 3/8" |
Materials | Aluminum Alloy (Body), High-Alloy Steel (Rod) |
