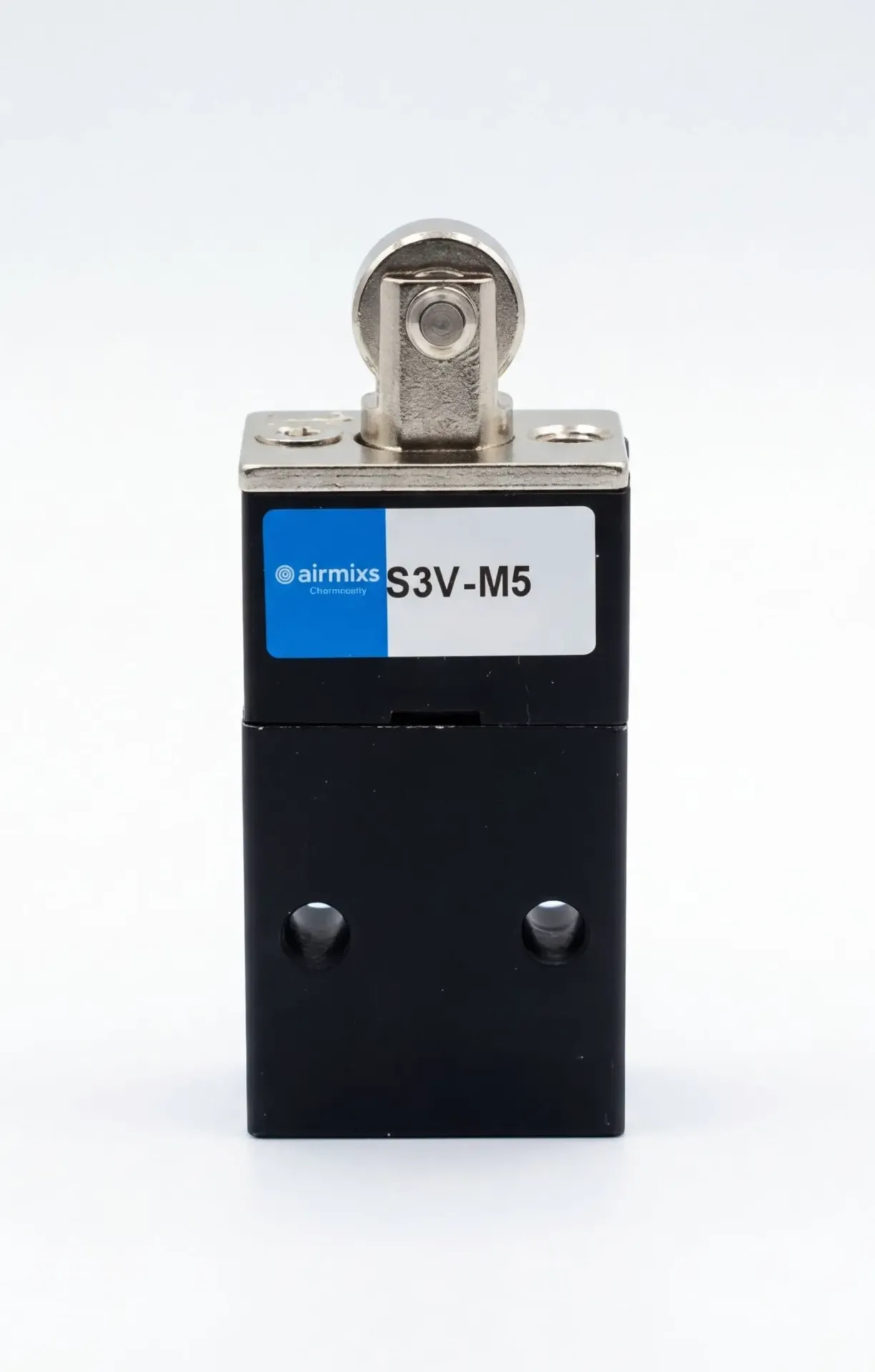

The AIRMIXS S3V-M5 is a high-precision, 3/2-way mechanical control valve designed for automated position sensing and limit switching within pneumatic systems. Featuring a vertical roller actuator, this valve is triggered by external mechanical force from moving machinery parts, such as a piston rod or a sliding plate, making it an ideal "stroke switch" for sequence control.
Its compact, lightweight aluminum alloy body is engineered for space-constrained environments. The valve utilizes a sensitive shut-off structure that ensures excellent tightness and rapid direction changes without the need for additional lubrication.
Feature | Specification |
|---|
Model | S3V-M5 |
Valve Type | 3/2-Way (3 Ports / 2 Positions) |
Actuator Type | Vertical Roller Lever |
Port Size | M5 x 0.8 |
Working Medium | Compressed Air (Filtered by $\geq$40 $\mu$m) |
Acting Type | Direct Acting |
Operating Pressure | 0 – 1.0 MPa (0 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Temperature Range | -5°C to 60°C (Standard) |
Effective Area | 2.5 mm$^2$ ($C_v$= 0.14) |
Body Material | Aluminum Alloy |
Lubrication | Not required |
