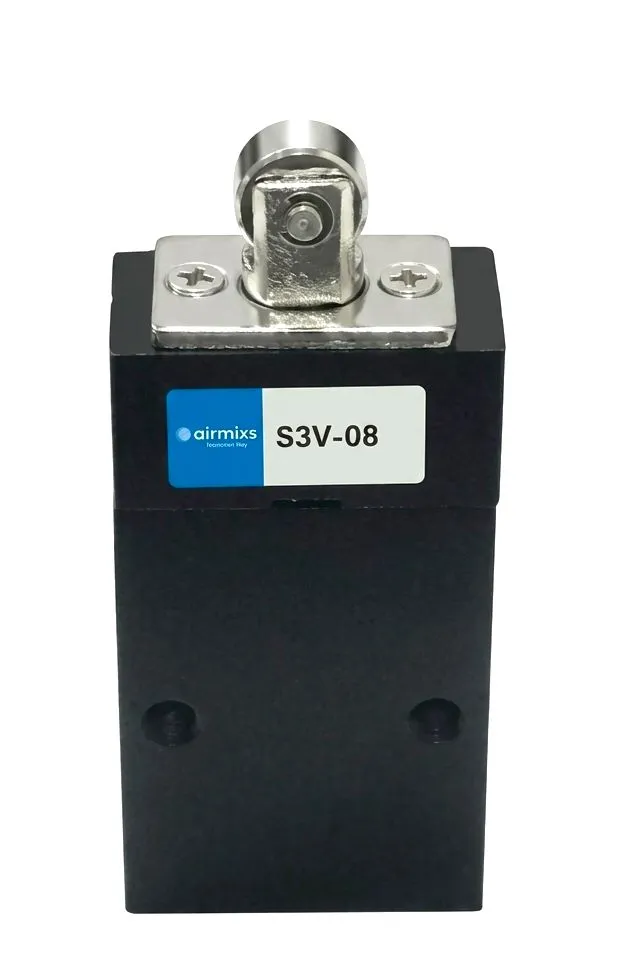

The AIRMIXS S3V-08 is a high-flow mechanical valve equipped with a vertical roller lever actuator. This design allows the valve to be triggered by a moving machine part or cam, making it perfect for detecting the end-of-stroke in pneumatic cylinders. Its aluminum body and precision-engineered roller ensure a long service life even in high-cycle industrial environments.
Item | Specification |
|---|
Model | S3V-08 |
Valve Type | 3 Port 2 Position (3/2 Way) |
Actuator Type | Roller Lever (V Type) |
Fluid | Air (40μm filtered) |
Port Size | 1/4" (G / PT / NPT) |
Operating Pressure | $0$~ $0.8\text{ MPa}$($0$~ $114\text{ psi}$) |
Proof Pressure | $1.2\text{ MPa}$($175\text{ psi}$) |
Temperature Range | $-5\text{°C}$to $60\text{°C}$ |
Flow Capacity (Cv) | $0.89$($14.0\text{ mm}^2$) |
Material | Aluminum Alloy Body / Steel Roller |
