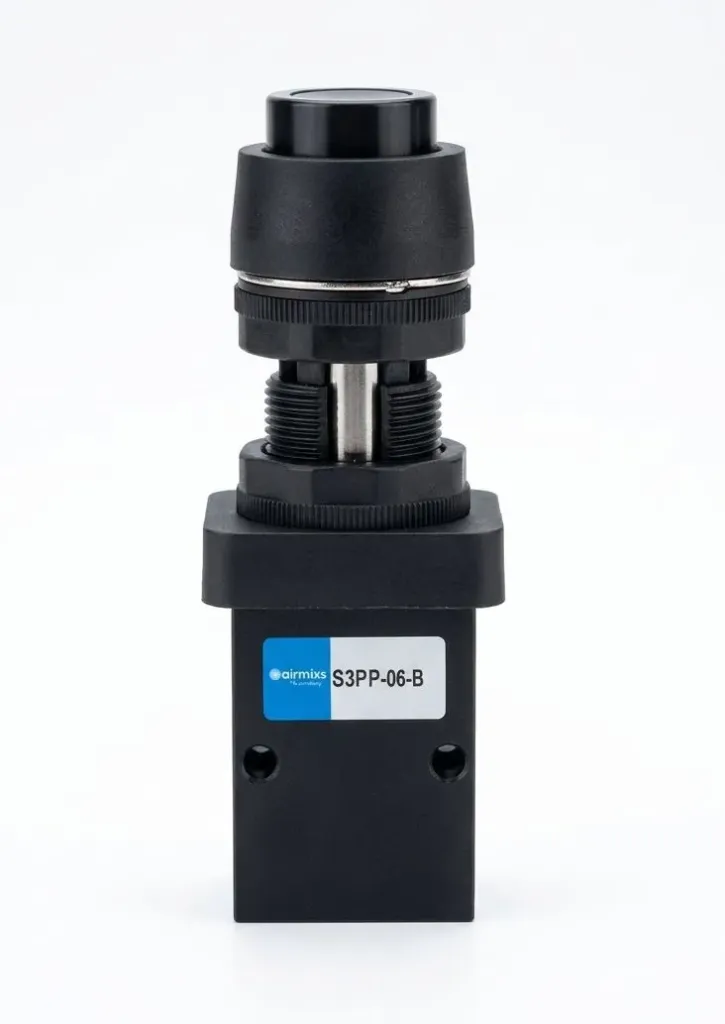

The AIRMIXS S3PP-06-B is a high-performance mechanical control valve designed for manual operation in pneumatic automation circuits. This 3-port, 2-position valve utilizes a low-profile black flush button, making it an excellent choice for control panels where accidental activation must be minimized. Constructed with a durable black aluminum alloy body and standard G1/8" porting, it provides reliable switching and an instantaneous spring-return reset for consistent signal control.
Feature | Specification |
|---|
Model | S3PP-06-B |
Valve Type | 3-Port, 2-Position (3/2 Way) |
Actuator Type | Flush Push Button |
Reset Type | Mechanical Spring Return |
Port Size | G 1/8" |
Operating Medium | Clean Compressed Air (40μm filtered) |
Operating Pressure | 0 – 0.8 MPa (0 – 8 bar) |
Proof Pressure | 1.2 MPa (12 bar) |
Ambient Temperature | -5°C to 60°C |
Body Material | Anodized Aluminum Alloy |
Button Color | Black (B) |
Mounting Diameter | 22mm (Standard Panel Cutout) |
