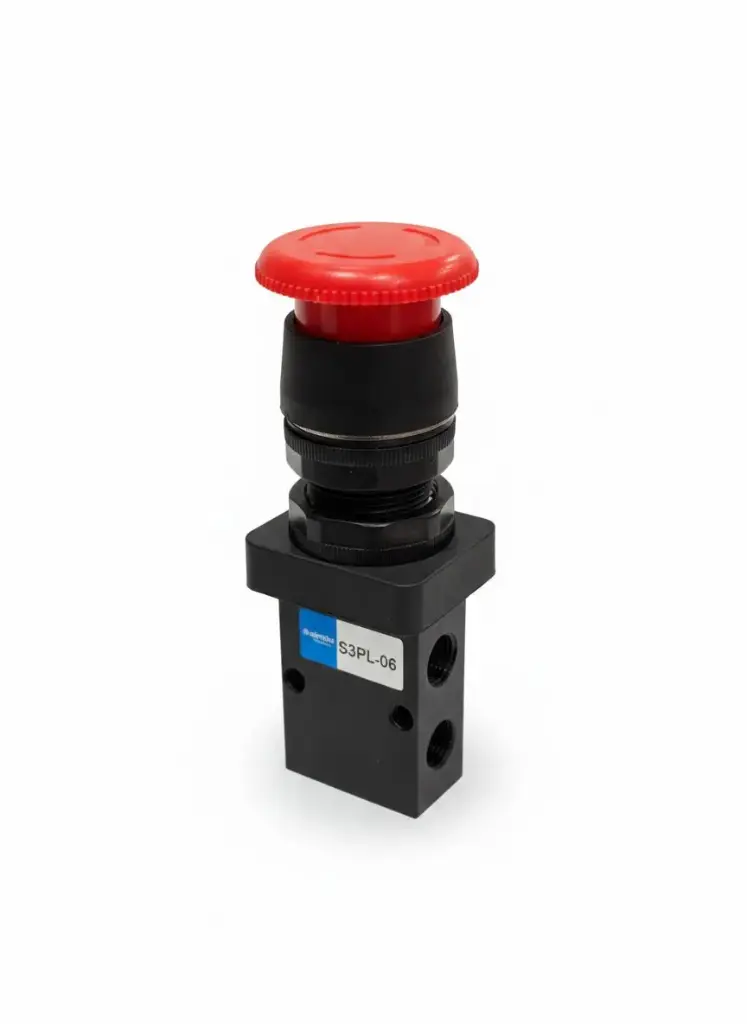

The S3PL-06 is a high-performance 3/2-Way Mechanical Control Valve specifically designed for manual emergency or safety stop functions in pneumatic systems. This model is characterized by its Latching Mushroom Push Button (usually in Red), which ensures the valve stays in the "triggered" state until manually reset, providing critical safety control for industrial machinery.
Feature | Specification |
|---|
Model | S3PL-06 |
Valve Type | 3-Port / 2-Position |
Action Type | Direct Acting |
Actuator Type | Latching Mushroom Push Button |
Port Size | 1/8" PT / G / |
Operating Pressure | 0 – 1.0 MPa(0 – 145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Working Temperature | -20°C to 70°C |
Body Material | High-Strength Aluminum Alloy |
Lubrication | Not Required |
