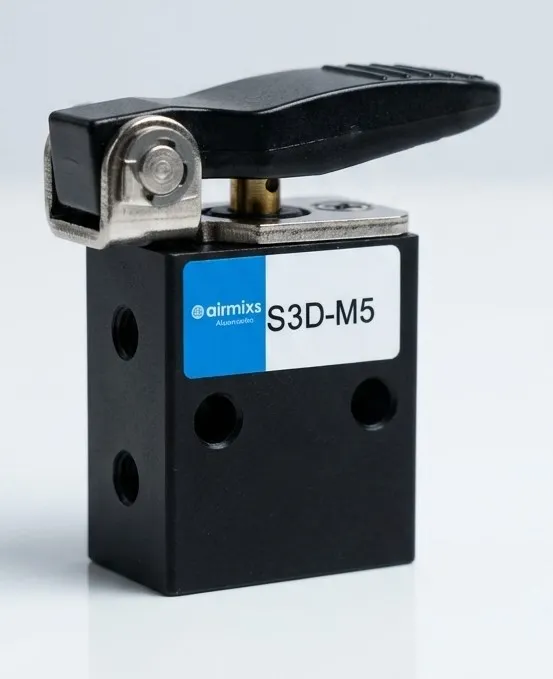

The AIRMIXS S3D-M5 is a compact, high-precision 3-way direct-acting micro solenoid valve designed for precise pneumatic signal control and small-bore actuator driving. Operating in a Normally Closed (NC) configuration, the valve remains closed until energized. Featuring an M5 threaded connection port, it offers rapid response times, low power consumption, and compact installation, making it ideal for medical equipment, analytical instruments, micro-fluidics, and space-restricted industrial automation systems.
| Parameter | Specification |
|---|
Model | S3D-M5 |
Brand | AIRMIXS |
Valve Type | 3-Way / 2-Position, Direct-Acting |
Operation State | Normally Closed (NC) |
Port Size | M5 x 0.8 Thread |
Orifice Size | 1.0 mm |
Flow Coefficient (Cv) | 0.05 |
Operating Pressure | Air/Gas: 0 – 0.8 MPa (0 – 8 bar / 0 – 116 PSI) |
Operating Temperature | -5°C to 60°C (23°F to 140°F) |
Fluid Compatibility | Filtered Air, Inert Gases, Neutral Gaseous Media |
Coil Voltage Options | DC 12V, DC 24V, AC 110V, AC 220V |
Power Consumption | DC: 1.5W / AC: 2.0VA |
Voltage Tolerance | ±10% |
Duty Cycle | 100% Continuous Duty |
Response Time | $\le 10\text{ ms}$ |
Seal Material | NBR (Nitrile) |
