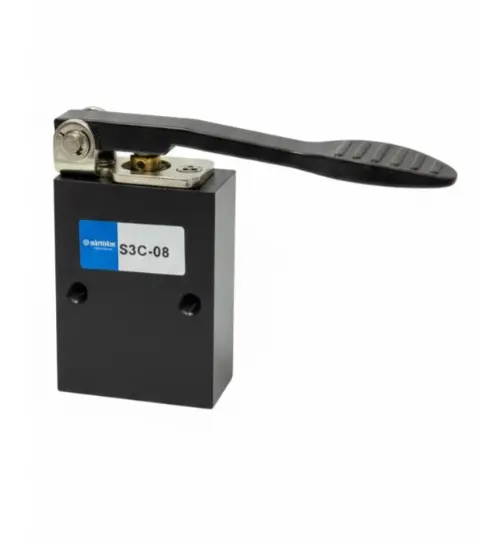

The S3C-08 is a reliable mechanical limit valve designed for demanding industrial automation environments. By utilizing a Long Roller Lever, this valve allows for smooth, repeatable actuation by cams, machine slides, or cylinder rods, making it a critical component for sequential control systems.
Feature | Specification |
|---|
Model | S3C-08 |
Valve Type | 3-Port / 2-Position (3/2-way) |
Acting Type | Direct Acting |
Actuator Type | Long Roller Lever |
Port Size | 1/4" PT(Standard) |
Operating Pressure | 0 – 1.0 MPa(0 – 145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Temperature Range | -20°C to 70°C |
Orifice Size | 12.0 $mm^2$(Cv = 0.67) |
Lubrication | Not Required |
