The AIRMIXS S10T $1/2"$ High-Pressure Safety Relief Valve is a critical security component engineered to safeguard pneumatic networks, closed vessels, and industrial processing equipment from hazardous over-pressure spikes. By automatically venting excess volume when the internal system threshold surpasses 23 BAR, it actively protects infrastructure integrity and ensures workplace safety.
Key Features & Benefits
Leaked-Proof Sealed Cap (T-Type):Unlike standard exposed-lever models, the S10T architecture incorporates a tightly sealed mechanical top dome.This guarantees that discharged gases or fluids are safely channeled exclusively through the designated side outlet thread, protecting the surrounding environment and operating personnel.
Premium Bronze Cast Construction:The heavy-duty bronze alloy body delivers exceptional resilience against extreme thermal cycling, aggressive mechanical strain, and oxidative corrosion.It is perfectly optimized for handling both high-temperature steam expansions and dense pneumatic pressures.
High-Pressure Security Management:Configured with a heavy-tension inner spring mechanism, this unit handles intensive workloads up to 23 BAR with zero structural distortion, making it ideal for multi-stage air compressor systems and heavy-duty industrial pipe manifolds.
Precision Machined Seating:Features high-precision internal machining that limits early fluttering, ensuring an airtight, leak-free seal during normal operations and a smooth, swift venting path when responding to sharp pressure spikes.

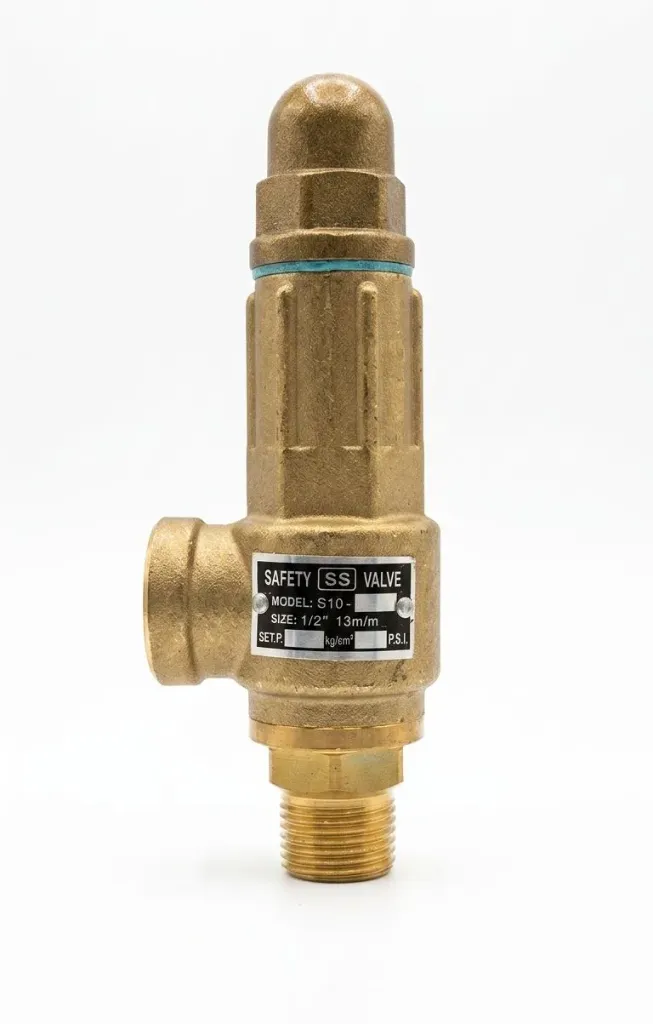

Product List Name:AIRMIXS S10T $1/2"$ Bronze High-Pressure Safety Relief Valve with Sealed Cap (23 BAR)
Estimated Price Range:220 SAR to 280 SAR(Note: While the $1"$ variant of this high-pressure series retails around 380 SAR, the smaller $1/2"$ configuration generally positions within this lower competitive tier).
Technical Data Sheet
Core Specifications
Brand:AIRMIXS
Model:S10T (Sealed Cap Type / Closed Dome)
Inlet Connection Size:$1/2"$ Male RC Thread ($13\text{ mm}$ Seat Diameter)
Outlet Connection Size:$1/2"$ Female G Thread
Factory Preset / Max Pressure:23 BAR ($23.4\text{ kgf/cm}^2$)
Working Temperature Range:$-45^\circ\text{C}$ to $185^\circ\text{C}$
Applicable Media:High-Pressure Compressed Air, Steam, Nitrogen, Hot Water, and Non-Corrosive Gases/Liquids
Material Construction
Main Valve Body:Heavy-Duty Industrial Bronze (ASTM-B584-C83600)
Sealed Top Cap:Cast Brass / Bronze
Internal Spindle & Disc:Precision-Machined Brass (ASTM-B16-C36000 / ASTM-B124-C37700)
Internal Spring:High-Tension Reinforced Stainless Steel
