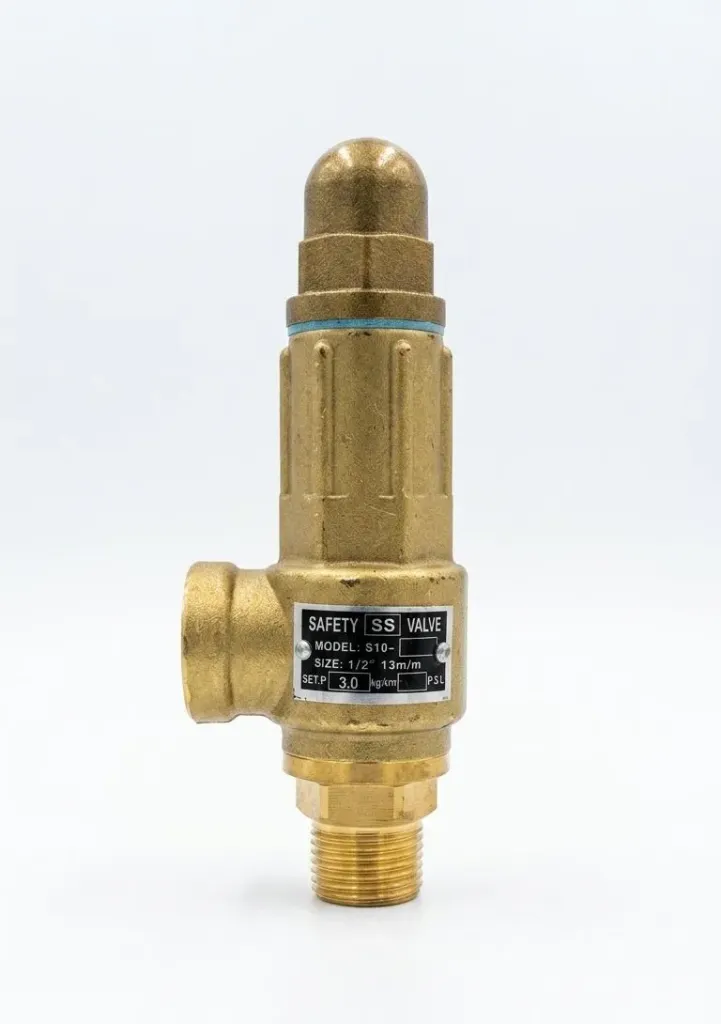

The AIRMIXS S10-T 1/2" is an industrial-grade, automatic pressure relief safety valve designed to safeguard pneumatic infrastructure, pressure vessels, and pipeline configurations against dangerous over-pressure events. Operating on a precise direct-acting, spring-loaded safety mechanism, this valve automatically pops open to vent excessive compressed air or gases the moment internal system thresholds cross the calibrated limit.
This specific configuration features a standard 1/2" male BSPT/NPT inlet connection paired with a female right-angle exhaust outlet for safe directional venting. Factory-calibrated and securely stamped with a set pressure configuration of 3.0 kg/cm² (approx. 3 Bar / 43 PSI), the heavy-duty structural body style is built to withstand ultimate burst line pressures scaling up to 33 Bar (478 PSI), making it a reliable fail-safe for critical air systems.
Feature | Specification |
|---|
Model Code | S10-T (S10 Threaded) |
Brand | AIRMIXS Pneumatics |
Valve Type | Spring-Loaded Direct Acting Safety Relief Valve |
Inlet Connection Size | 1/2" Male Threaded (Tapered Profile) |
Exhaust Discharge Outlet | Female Right-Angle Port (13 m/m Orifice Layout) |
Factory Set Pressure (SET.P) | 3.0 kg/cm² (~3.0 Bar / 42.6 PSI) |
Maximum Pressure Limit | 33 Bar (3.3 MPa / 478.6 PSI) |
Flow Orifice Configuration | 13 mm Diameter Opening |
Fluid / Medium Suitability | Compressed Air, Non-Corrosive Industrial Gases |
Sealing System Core | Metal-to-Metal Precision Lapped Disc Seat |
Cap/Bonnet Design | Closed Bonnet Style (Prevents external environmental contamination) |
Working Temperature Range | Standard Industrial Thermal Limits |
