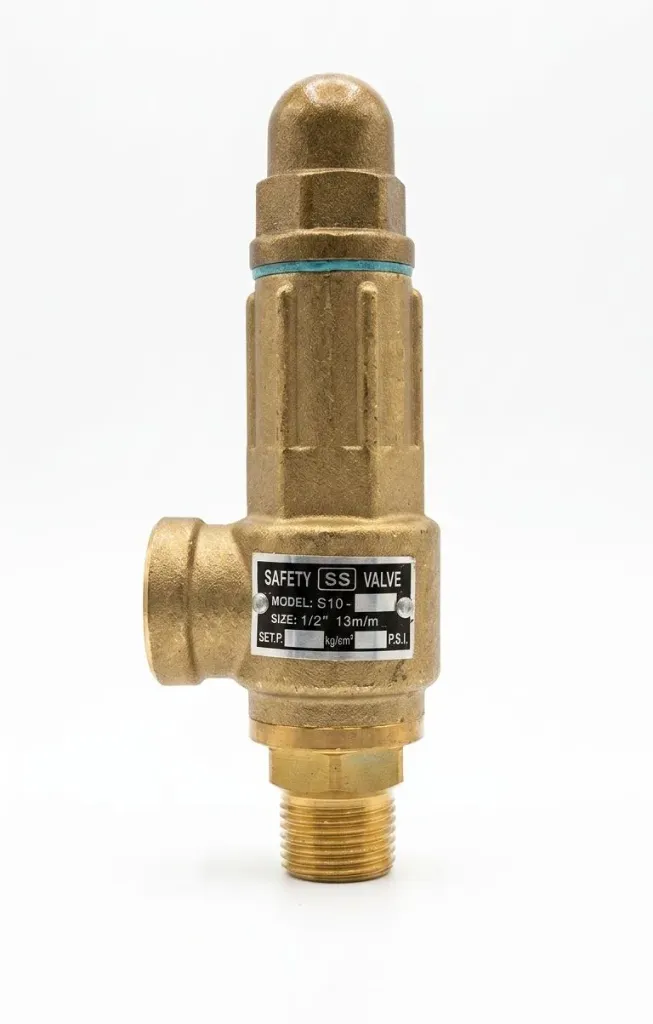

The AIRMIXS S10-T 1/2" is an industrial-grade, automatic pressure relief safety valve designed to safeguard pneumatic systems, air compressors, branch piping circuits, and small pressure vessels from over-pressurization. Utilizing a robust spring-loaded, direct-acting system, this valve automatically snaps open to safely exhaust compressed air or gases into the atmosphere the moment internal pipeline pressures cross preset parameters.
This modular safety component features a standard 1/2" male threaded connection port at the base for firm line installation, along with a right-angle female exhaust port measuring a wide 13 mm orifice to quickly handle massive volumetric discharge rates. Engineered with a durable structural design capable of handling maximum line limits up to 23 Bar (333.5 PSI), it provides dependable mechanical fail-safe performance across industrial setups.
Feature | Specification |
|---|
Model Code | S10-T (S10 Threaded Series) |
Brand | AIRMIXS Pneumatics |
Valve Type | Spring-Loaded Direct Acting Safety Relief Valve |
Inlet Port Size | 1/2" Male Threaded (Tapered Profile) |
Exhaust Discharge Port | Female Right-Angle Port (13 m/m Internal Orifice) |
Flow Orifice Diameter | 13 mm |
Maximum Pressure Resistance | 23 Bar (2.3 MPa / 333.5 PSI) |
Fluid / Medium Suitability | Clean Compressed Air, Non-Corrosive Industrial Gases |
Sealing System Core | Metal-to-Metal Precision Lapped Disc Seat |
Cap / Bonnet Design | Closed Bonnet Style (Protects adjustments from dirt/dust) |
Working Temperature Range | Standard Industrial Thermal Operation |
