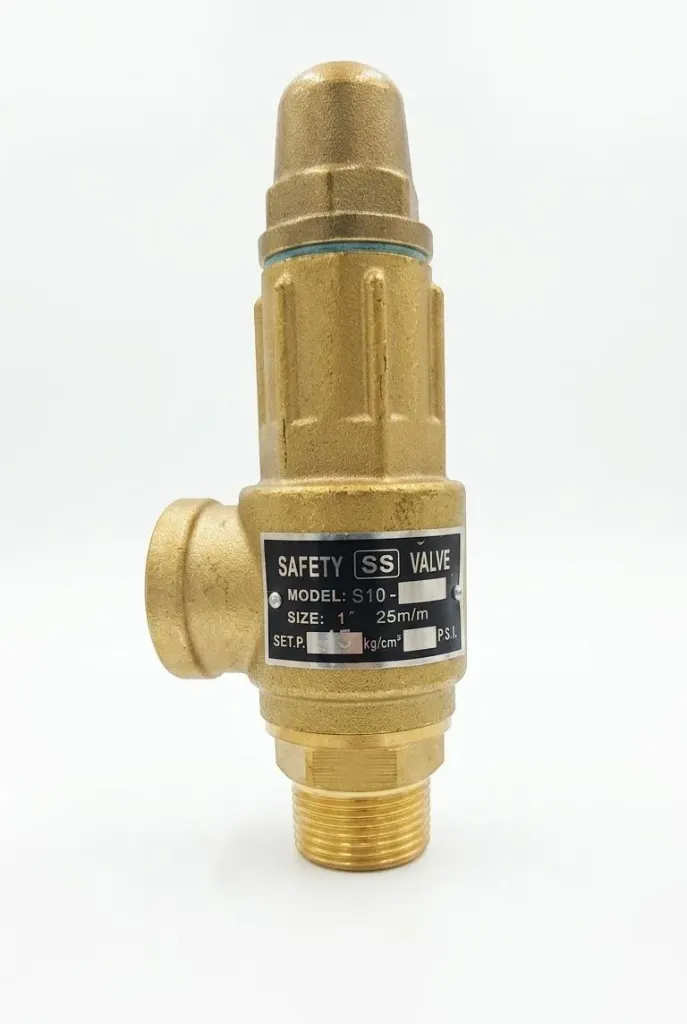

The AIRMIXS S10-T 1" is a heavy-duty, high-capacity automatic pressure relief safety valve designed to protect large-scale pneumatic infrastructure, main air receiver tanks, and industrial piping circuits from catastrophic over-pressurization. Utilizing a high-precision, spring-loaded direct-acting system, this valve provides an immediate mechanical fail-safe by opening automatically to exhaust immense volumes of compressed air or gases once system thresholds exceed safety parameters.

This heavy-flow configuration features a large 1" male threaded connection port at the inlet to handle heavy distribution line layouts, coupled with a right-angle female discharge port featuring an expanded 22 mm internal flow orifice to maximize air evacuation speed. Rated for maximum working limits up to 15 Bar (217.5 PSI), it is engineered to ensure positive seal reseating and continuous plant safety under rigorous factory conditions.
