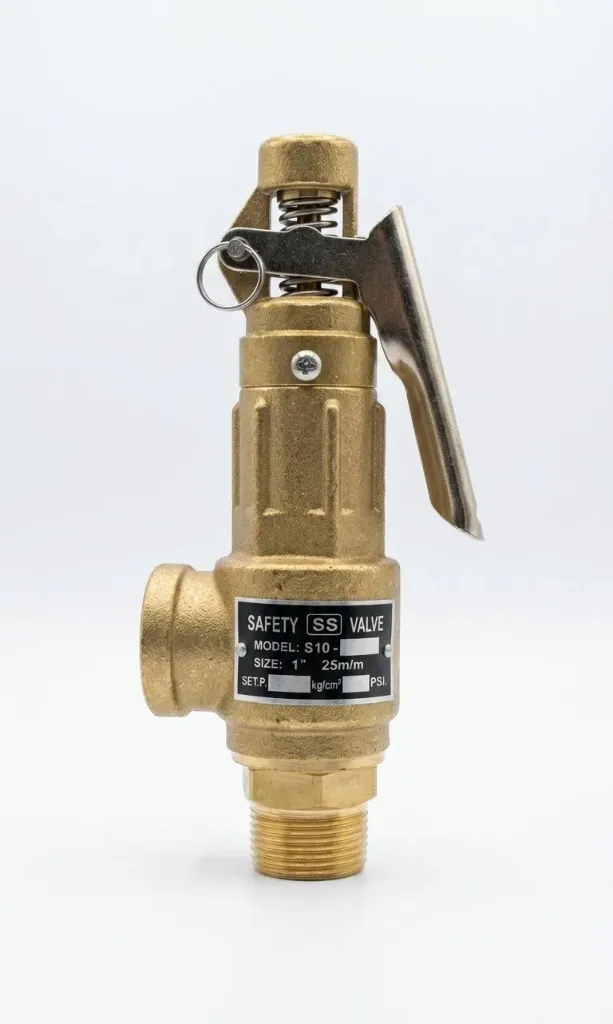

The AIRMIXS S10-LT 1" is a heavy-duty, high-capacity automatic pressure relief safety valve engineered to safeguard large-scale pneumatic infrastructures, main steam pipelines, accumulation tanks, and heavy industrial boilers from dangerous over-pressurization. Utilizing a high-precision, spring-loaded direct-acting configuration, this valve provides an immediate mechanical fail-safe by snapping open to exhaust immense volumetric discharge rates into the atmosphere the moment internal system pressures breach preset thresholds.

This large-flow variant is built with an robust 1" male threaded connection port at the base for highly stable line installation, working in tandem with a right-angle female exhaust port designed around an expanded 25 mm internal flow orifice to maximize air or gas evacuation speeds. To guarantee regulatory testing compatibility and operational safety, the S10-LT features an integrated manual lifting lever with a safety pull-ring assembly. This allows facility engineers to manually actuate the valve seat, clearing out potential mineral scaling or particulate debris even when the line is running below set pop limits.
