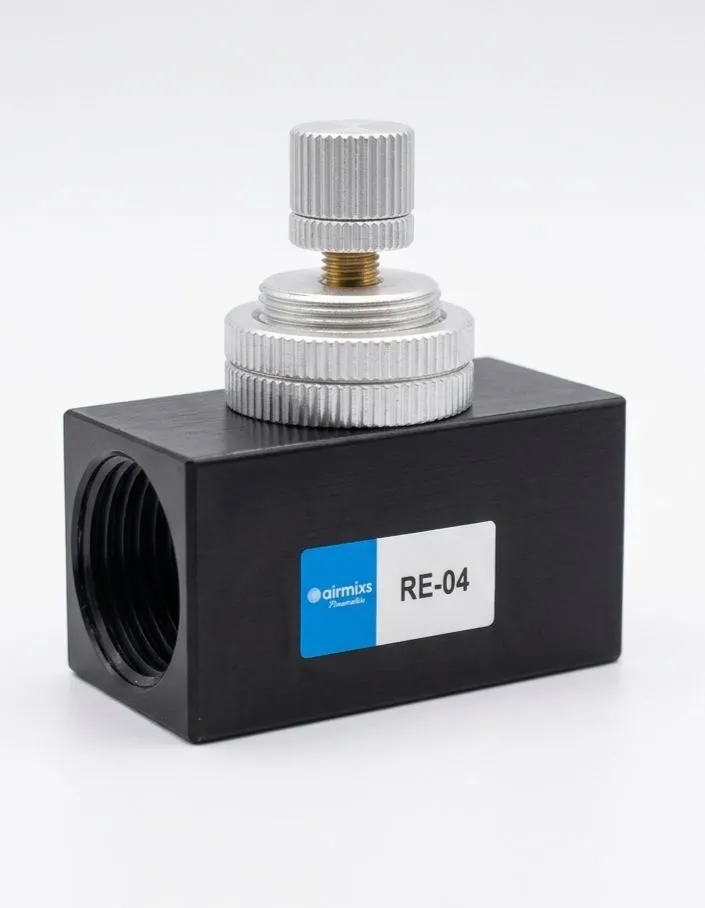

The AIRMIXS RE-04 is a high-performance one-way flow control valve designed to precisely regulate the speed of pneumatic actuators and cylinders. Engineered for G 1/2" piping systems, this valve allows for free air flow in one direction while providing restricted, adjustable flow in the opposite direction.
Constructed from a robust aluminum alloy with a sleek black finish, the RE-04 is built to withstand rigorous industrial environments. Its high-sensitivity adjustment needle allows for fine-tuned speed control, making it an essential component for automation tasks that require smooth, consistent movement and timing.
Feature | Specification |
|---|
Model | RE-04 |
Port Size | G 1/2" |
Working Medium | Filtered Compressed Air |
Pressure Range | 0.05 – 1.2 MPa (7 – 174 psi) |
Operating Temp. | -5°C to 60°C |
Body Material | High-Strength Aluminum Alloy |
Valve Type | Unidirectional (One-Way) Flow Control |
Nominal Size | 12 mm |
Seal Material | NBR (Standard) |
