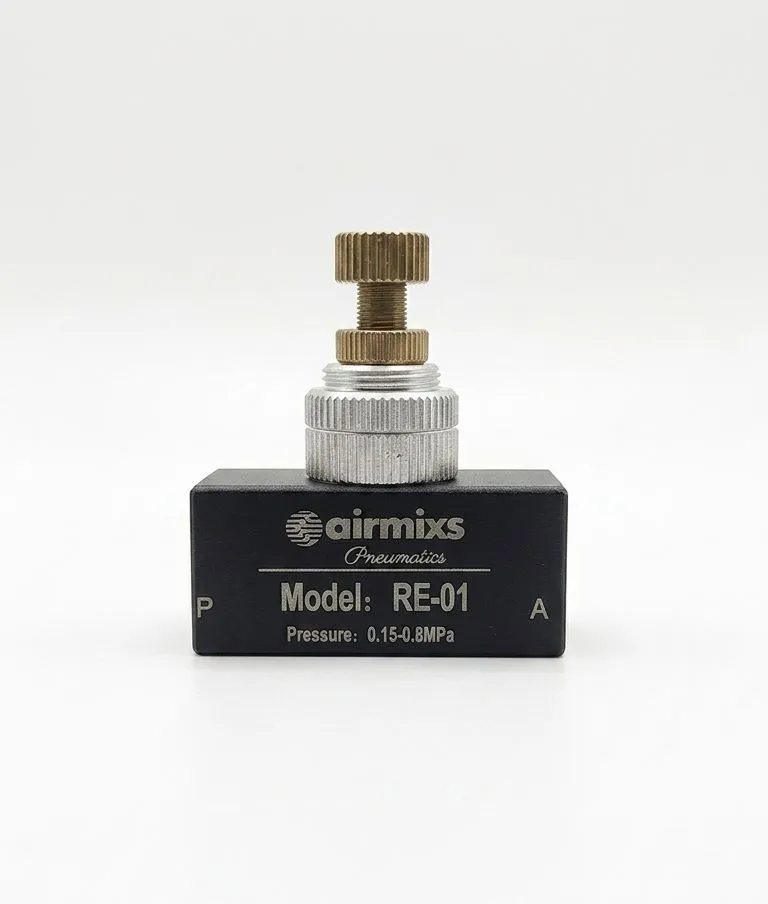

The AIRMIXS RE-01 is a compact, line-mounted flow control valve engineered for reliable speed regulation in pneumatic machinery. Constructed with a robust, black anodized aluminum alloy body, it features an adjustable knurled brass needle screw locked securely by a durable hex nut.
This valve features a standard female-threaded in-line architecture marked with clear port indicators (P for pressure inlet, A for output line). Designed to withstand demanding factory environments, its micro-adjustable needle design allows operators to fine-tune compressed air velocity, ensuring smooth structural motion and preventing pneumatic component wear.
Feature | Specification |
|---|
Model | RE-01 |
Brand | AIRMIXS Pneumatics |
Port Size (P & A) | Rc 1/8" Female Thread |
Valve Type | In-Line Flow Control / Throttle Valve |
Operating Pressure Range | 0.15 ~ 0.8 MPa (21 ~ 116 PSI) |
Proof Pressure | 1.2 MPa (174 PSI) |
Operating Temperature | -5°C to 60°C (No Freezing) |
Body Material | Anodized Aluminum (Black) |
Adjustment Needle Material | Nickel-Plated Brass |
Applicable Medium | Compressed Air (Filtered) |
