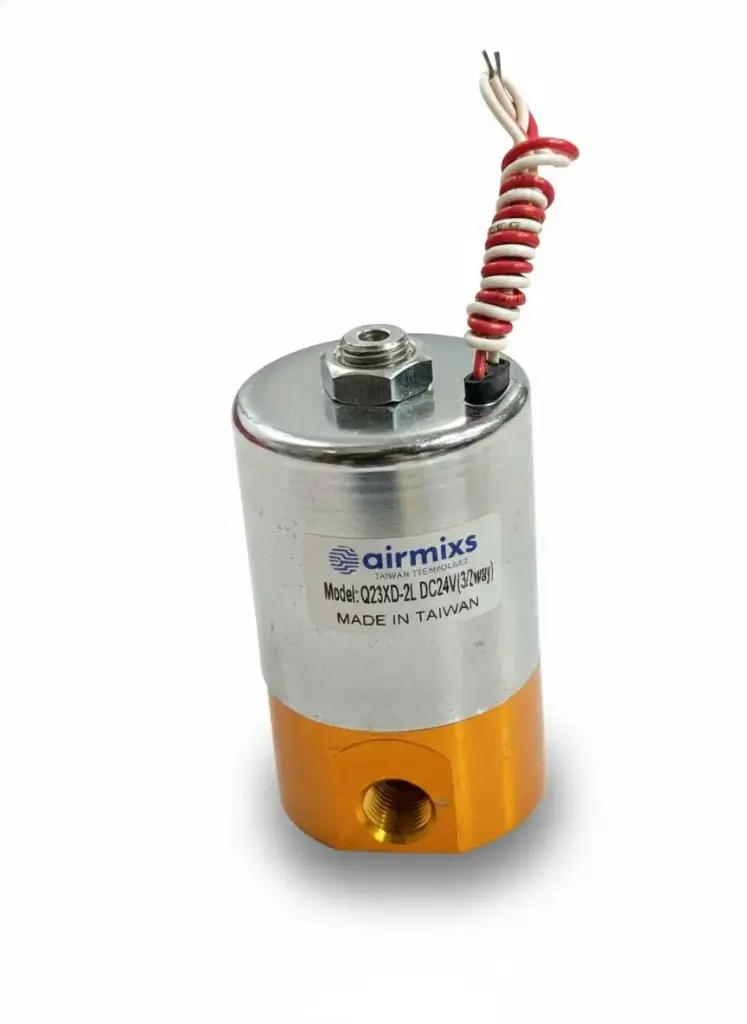

The Q23XD-2L is a robust, "bullet-style" solenoid valve built for high-reliability automation tasks. Because it is a direct-acting valve, it does not require a minimum air pressure to function, making it ideal for low-pressure systems, vacuum applications, or acting as a high-speed trigger for larger industrial valves.
Feature | Specification |
|---|
Model | Q23XD-2L |
Valve Type | 3-Port, 2-Position (3/2 Way) |
Action | Direct-Acting(Plunger Type) |
Port Size | 1/8" (G) |
Orifice Size | 1.5mm to 2.5mm |
Pressure Range | 0 to 0.8 MPa(0 to 116 PSI) |
Operating Voltage | 24V DC |
Power Consumption | 4.5W - 5.5W |
Duty Cycle | 100% ED (Continuous Duty) |
Body Material | Anodized Aluminum / Brass |
