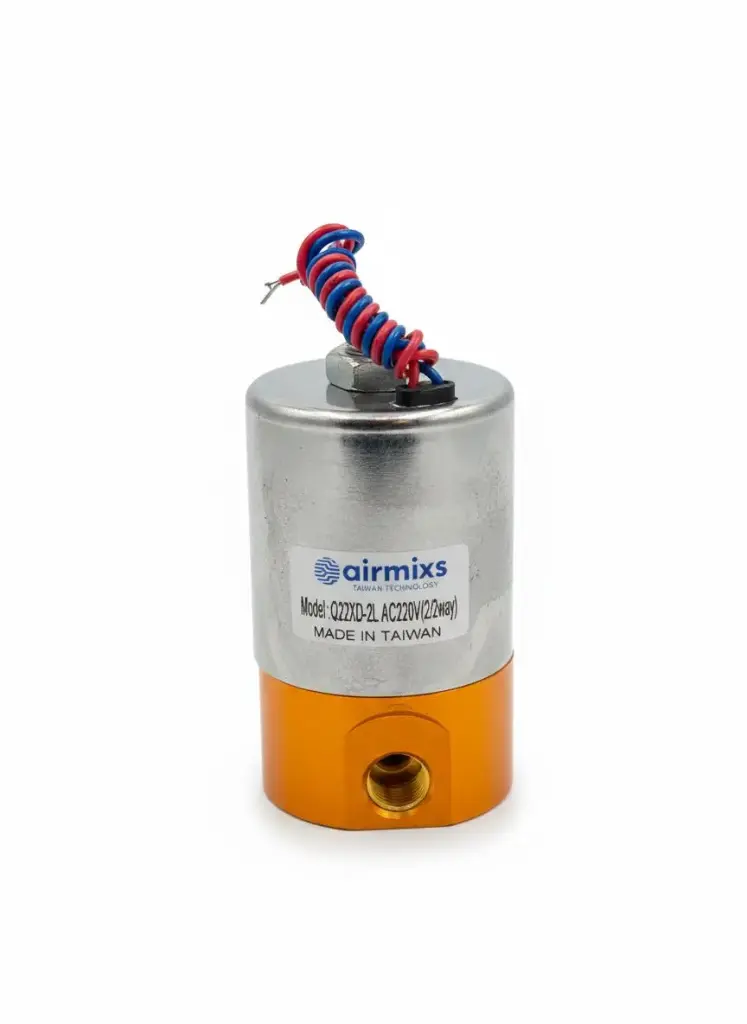

The Q22XD-2L is a compact "bullet-style" valve optimized for simple flow control tasks. As a 2/2-way valve, it acts as a gate: when energized, the internal plunger lifts to allow flow; when de-energized, the spring forces the plunger down to seal the orifice.
Feature | Specification |
|---|
Model | Q22XD-2L |
Valve Type | 2-Port, 2-Position (2/2 Way) |
Action | Direct-Acting(Plunger Type) |
Port Size | 1/8" (G / PT / NPT) |
Orifice Size | 1.5mm to 3.0mm |
Pressure Range | 0 to 0.8 MPa(0 to 116 PSI) |
Operating Voltage | 220V AC (50/60Hz) |
Power Consumption | 6VA - 8VA |
Fluid Media | Compressed Air, Inert Gas, Water |
Duty Cycle | 100% ED (Continuous Duty) |
