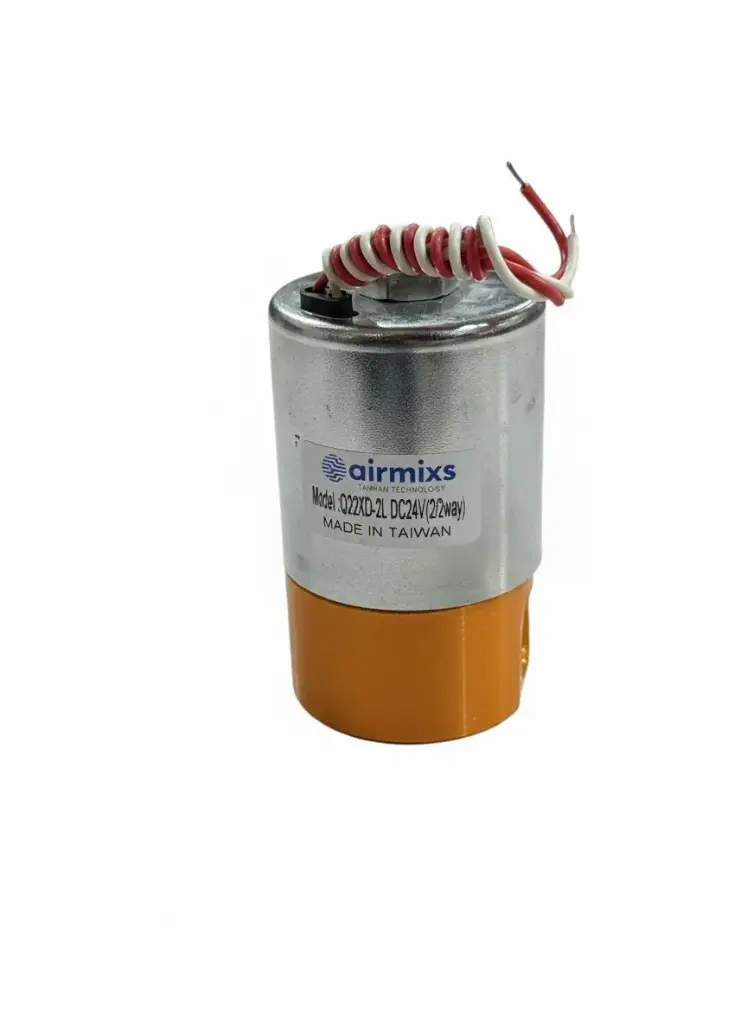

The Q22XD-2L is a compact, high-performance solenoid valve optimized for simple "on/off" control of air and liquids. Because it is a direct-acting valve, the internal solenoid plunger is moved directly by magnetic force, meaning it does not require any differential pressure to function—making it ideal for low-pressure or vacuum circuits where pilot-operated valves would fail.
Feature | Specification |
|---|
Model | Q22XD-2L |
Valve Type | 2-Port, 2-Position (2/2 Way) |
Action | Direct-Acting(Plunger Type) |
Port Size | 1/4" BSP / NPT |
Orifice Size | 2mm to 3mm |
Operating Pressure | 0 to 1.0 MPa(0 to 145 PSI) |
Operating Voltage | 24V DC |
Power Consumption | Approx. 5W - 8W |
Media | Filtered Air, Water, Oil, Inert Gas |
Body Material | Anodized Aluminum / Brass / Copper |
Response Time | $\leq$20 ms |
