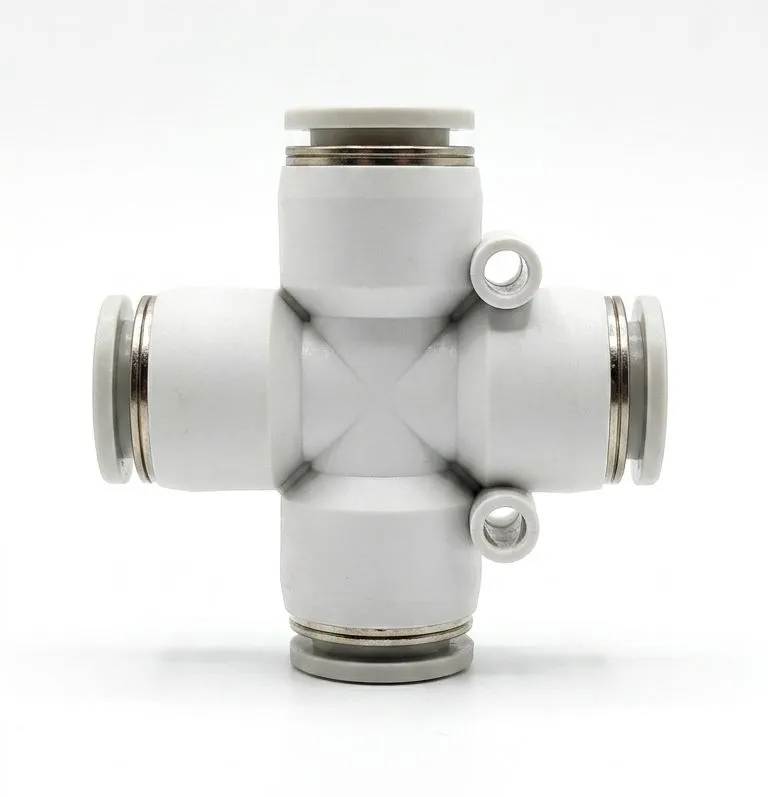

The PZA08 Union Cross Fitting is an equal 4-way push-to-connect connector designed to distribute compressed air or branch a main supply line into three separate directions. Engineered for 8mm outer diameter (O.D.) flexible tubing, it enables tool-free, instant hose connections and quick line releases in pneumatic systems and automation networks.
Constructed with a high-strength PBT composite resin body, stainless steel gripping claws, and NBR seals, the PZA08 ensures an airtight connection without restricting flow rates. Its 4-way cross configuration provides a neat, space-saving solution for manifold blocks, machinery air circuits, and control panels.
Property | Technical Specification |
|---|
Model Code | PZA08 (PZA-08 / PZA-8) |
Fitting Type | 4-Way Equal Union Cross (Push-In / One-Touch) |
Applicable Tube Outer Diameter (O.D.) | 8 mm (All 4 Ports) |
Fluid Compatibility | Compressed Air, Industrial Vacuum, Inert Gas |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / ~145 PSI) |
Negative Pressure / Vacuum | -100 kPa (-29.5 inHg / -750 mmHg) |
Proof / Burst Pressure | 1.5 MPa (~215 PSI) |
Operating Temperature | 0°C to +60°C (32°F to 140°F) |
Applicable Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Body Material | PBT / POM Composite Resin |
Locking Mechanism | Stainless Steel (SUS 304) Gripping Claws |
Seals | NBR (Nitrile Rubber) O-Ring |
