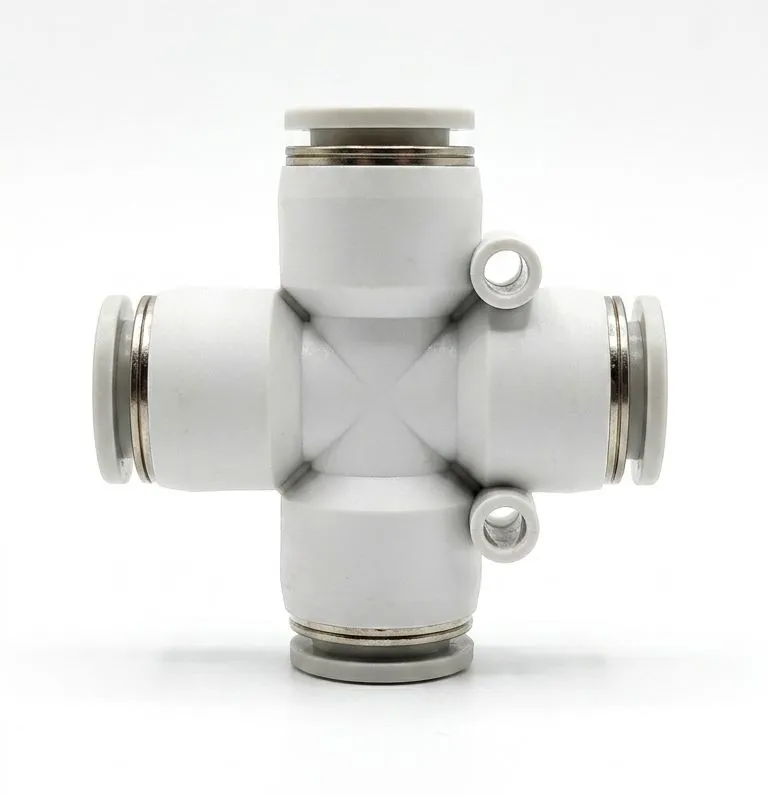

The PZA04 Union Cross Fitting is a 4-way equal push-to-connect connector designed to split a single pneumatic supply line into three separate branches or combine four air lines at a central junction. Built for 4mm outer diameter (O.D.) flexible tubing, it enables fast, tool-free installation and removal in compact automation systems and air distribution networks.
Constructed with a durable PBT/composite resin body and stainless steel internal lock claws, the PZA04 delivers an airtight, reliable connection without causing flow restriction. Its compact cross design makes it ideal for tight control panel layouts, robotics air circuits, and pneumatic manifold setups.
Property | Technical Specification |
|---|
Model Code | PZA04 (PZA-04 / PZA-4) |
Fitting Type | 4-Way Equal Union Cross (Push-In / One-Touch) |
Applicable Tube Outer Diameter (O.D.) | 4 mm (All 4 Ports) |
Fluid Compatibility | Compressed Air, Vacuum, Inert Gas |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / ~145 PSI) |
Negative Pressure / Vacuum | -100 kPa (-29.5 inHg / -750 mmHg) |
Proof / Burst Pressure | 1.32 MPa to 1.5 MPa (~190 to 215 PSI) |
Operating Temperature | 0°C to +60°C (32°F to 140°F) |
Applicable Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Body Material | PBT / POM Composite Resin |
Locking Mechanism | Stainless Steel (SUS 304) Gripping Claws |
Seals | NBR (Nitrile Rubber) O-Ring |
