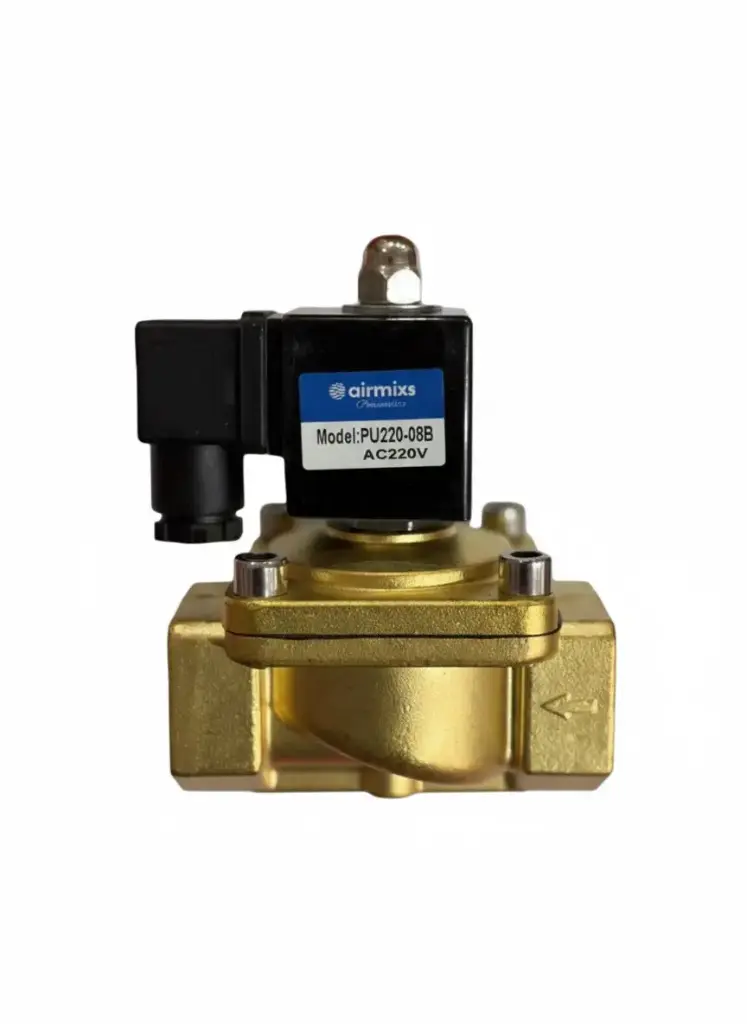

The PU220-08B is a heavy-duty, 1-inch solenoid valve engineered for high-capacity fluid management. Combining a massive 25mm orifice with a high-efficiency pilot-operated design, this valve offers the perfect balance of high flow rates and low power consumption. It is specifically designed for systems where maintaining high volume and pressure is essential.
Feature | Specification |
|---|
Model | PU220-08B |
Port Size | 1" G |
Orifice Diameter | 25 mm |
Flow Coefficient ($C_v$) | 12.0 |
Action Type | Pilot-Operated |
State | Normally Closed (NC) |
Body Material | Forged Brass |
Seal Material | NBR (Standard) |
Operating Pressure | 0.5 – 10 Bar(7 – 145 PSI) |
Max Pressure Resistance | 15 Bar (217 PSI) |
Operating Temperature | -5°C to 80°C |
