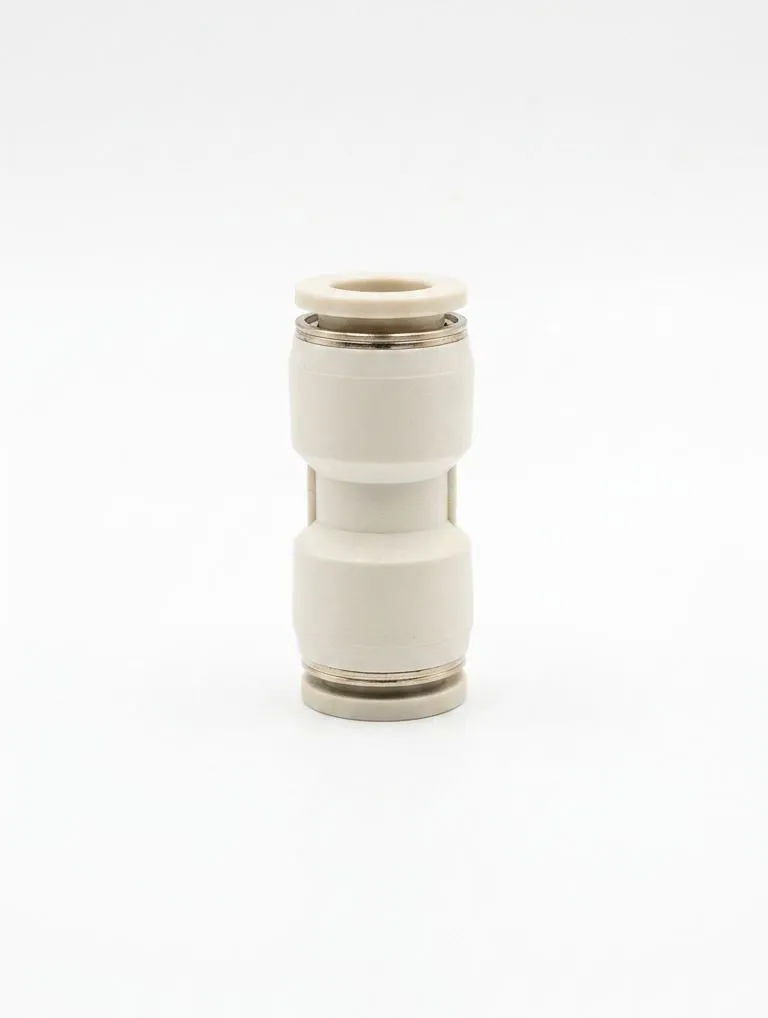

The PU-14 Straight Union Connector is an essential pneumatic fitting designed to easily join two 14\text{ mm}$ outer diameter (O.D.) tubes in a straight, inline configuration. Featuring a quick-release push-in mechanism with stainless steel lock-claws, it provides a secure, leak-proof seal without requiring tools for installation. Ideal for compressed air and vacuum systems, this connector ensures smooth fluid flow, rapid maintenance, and dependable performance in industrial automation.
Specification | Value |
|---|
Model | PU-14 |
Fitting Type | Straight Union / Union Straight Connector |
Applicable Tube Outer Diameter (OD) | 14\text{ mm} |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 \text{ to } 1.0\text{ MPa}($0 \text{ to } 10\text{ bar}) |
Proof / Max Pressure | 1.32 \text{ to } 1.5\text{ MPa} |
Operating Temperature | 0^\circ\text{C} \text{ to } 60^\circ\text{C} |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Connection Method | One-Touch Push-In / Quick Connect |
