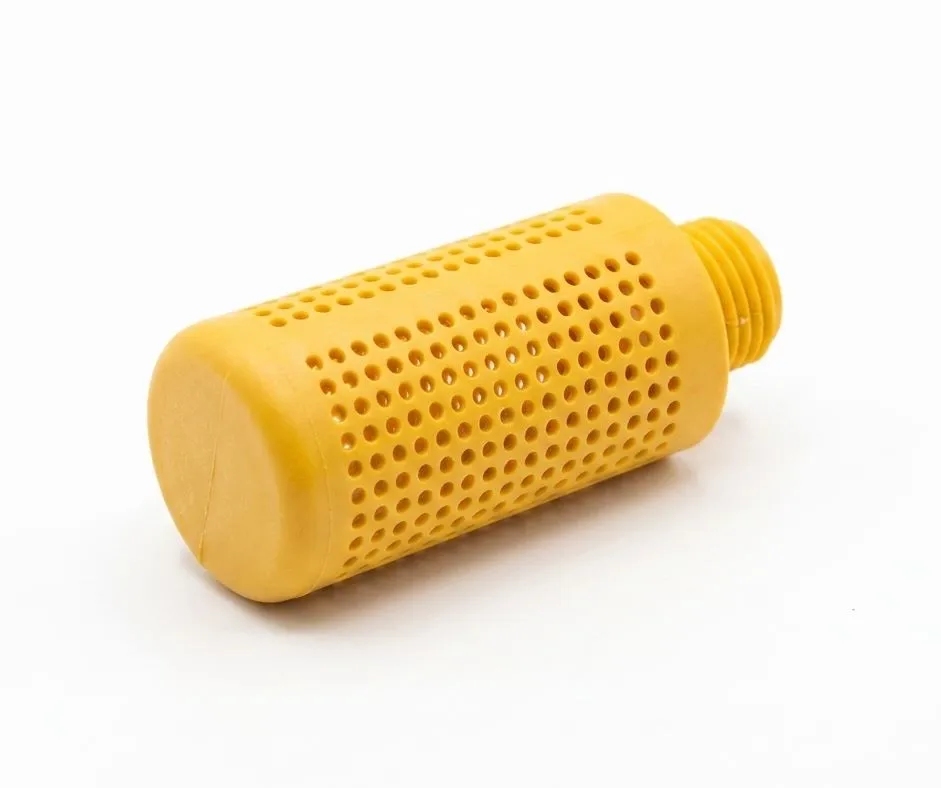

The PSL04 Plastic is a high-flow, porous plastic pneumatic silencer designed to significantly reduce exhaust air noise and filter out airborne contaminants from heavy-duty pneumatic control valves, air cylinders, and manifold exhaust ports. Constructed from high-density porous polyethylene (PE) resin, it delivers outstanding noise attenuation without causing high backpressure buildup in the system.
Featuring a 1/2" male threaded connection, the PSL04 ensures fast, tool-free installation into standard 1/2" exhaust ports. Its lightweight, corrosion-proof, and non-clogging plastic structure makes it an ideal solution for industrial automation machinery, air tools, packaging systems, and cleanroom applications.
Specification | Technical Detail |
|---|
Model | PSL04 Plastic / PSL-04 |
Fitting Type | Pneumatic Plastic Silencer / Muffler |
Thread Size | 1/2" Male Thread (PT / R / BSPT / NPT options) |
Body Material | Porous Polyethylene (PE) Resin / Plastic Base |
Filter Media | Sintered Porous Plastic |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 10 bar (0 to 145 PSI / 1.0 MPa) |
Proof Pressure | 3.0 MPa (435 PSI) |
Operating Temperature | -10°C to +60°C (14°F to 140°F) |
Noise Reduction | Approx. 20 – 30 dB(A) |
