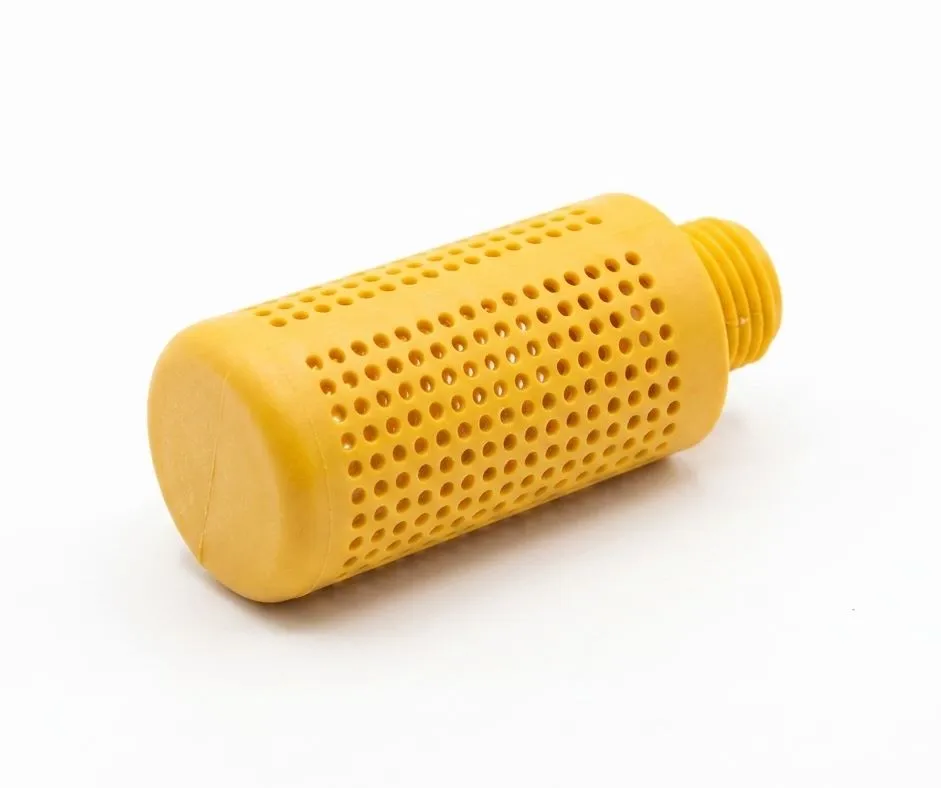

The PSL01 Speed Control Pneumatic Silencer combines noise reduction and exhaust flow adjustment into a single compact component. Featuring a male 1/8" thread (PT / BSPT / NPT / G), it installs directly into the exhaust ports of directional control valves, solenoid valves, and air cylinders to control cylinder speed while muffling air release noise.
Constructed with a heavy-duty brass threaded body, an adjustable control screw with a knurled locknut, and a porous sintered bronze filter core, the PSL01 allows precise tuning of exhaust flow. By adjusting the screw, operators can easily regulate cylinder stroke speed without requiring external throttle valves. Additionally, the sintered filter prevents foreign debris, dust, and metal particles from entering the valve's internal chambers.
Property | Technical Specification |
|---|
Model Code | PSL01 (PSL-01 / PSL-1/8) |
Product Type | Adjustable Flow Control Exhaust Silencer / Speed Controller |
Connection Thread Size | 1/8" Male Thread (PT / BSPT / NPT / G) |
Fluid Compatibility | Compressed Air, Industrial Vacuum, Inert Gas |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / 0 to ~145 PSI) |
Proof / Burst Pressure | 1.5 MPa to 2.0 MPa (~215 to 290 PSI) |
Operating Temperature | -10°C to +80°C (14°F to 176°F) |
Filtration Rating | 40 to 90 Microns |
Noise Reduction Level | ~15 to 22 dB noise attenuation |
Flow Adjustment Mechanism | Adjustable Center Screw with Locknut |
Body / Thread Material | Solid Brass |
Filter Core Material | Sintered Bronze / Copper Core |
