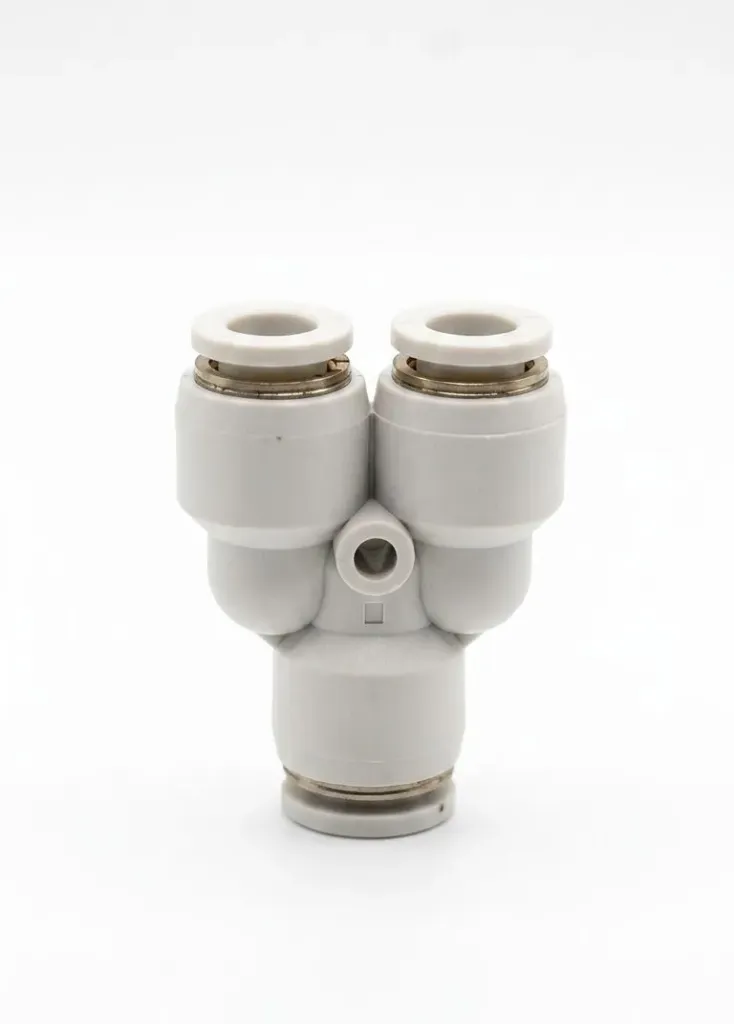

The AIRMIXS PW12-10 Union Reducer Y Connector is a heavy-duty 3-way push-in fitting engineered to split a primary 12mm pneumatic main line into two 10mm distribution lines.
Designed for high-flow industrial air distribution systems, automated machinery, and control circuits, it provides efficient inline tube size reduction without requiring extra manifold components. Each port features a tool-free push-in setup and internal lock claws that deliver a secure, leak-free connection under full system pressure.
Specification | Value / Technical Detail |
|---|
Model Code | PW12-10 |
Fitting Type | Union Reducer Y / 3-Way Branch Connector |
Main Inlet Connection (OD) | 12 mm |
Branch Outlet Connection (OD) | 2x 10 mm |
Compatible Media | Compressed Air, Vacuum |
Operating Pressure Range | 0 – 1.0 MPa (0 – 150 PSI / 0 – 10 bar) |
Max / Proof Pressure | 1.32 MPa to 1.5 MPa |
Vacuum / Negative Pressure | -100 kPa (-29.5 inHg / -750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
