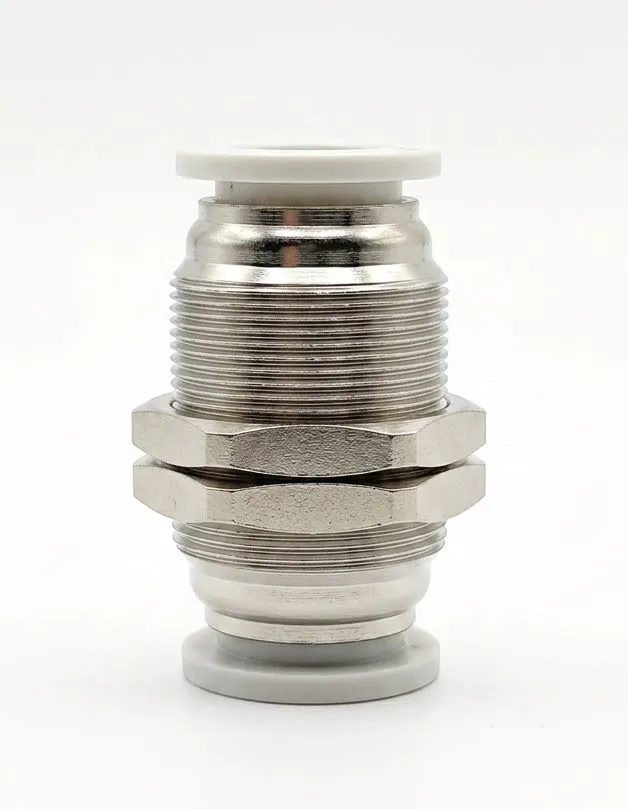

The PM10 Bulkhead Union Fitting is engineered for high-flow, secure panel-mount connections of pneumatic air lines passing through machine walls, control cabinets, or bulkheads. Built for 10mm outer diameter (O.D.) tubing, it features dual quick-connect push-in ports anchored tightly across panel surfaces with a fully threaded exterior body and two hex locknuts (M20 thread).
Manufactured with high-durability nickel-plated brass for maximum corrosion resistance and structural integrity, the PM10 provides reliable, tool-free tube attachment and release. It is built for demanding automation environments, compressed air lines, and industrial vacuum applications.
Property | Technical Specification |
|---|
Model Code | PM10 (PM-10 / PMM10) |
Fitting Type | Straight Panel Bulkhead Union (Push-in / One-Touch) |
Tube Outer Diameter (O.D.) | 10 mm x 10 mm |
Bulkhead Mounting Thread | M20 × 1.5 (with dual hex locknuts) |
Fluid Compatibility | Compressed Air, Vacuum, Inert Gas, Water (Non-freezing) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / ~145 PSI) |
Negative / Vacuum Pressure | -100 kPa (-29.5 inHg / -0.95 bar) |
Proof Pressure | 1.5 MPa (~215 PSI) |
Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
Applicable Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE), PVC |
Body / Thread Material | Nickel-Plated Brass (Anti-corrosion) |
Release Sleeve Material | POM / PBT Plastic (Grey, Blue, or Black) |
Locking Mechanism | Stainless Steel (SUS) Gripping Claws |
Seals | NBR (Nitrile Rubber) O-Rings |
