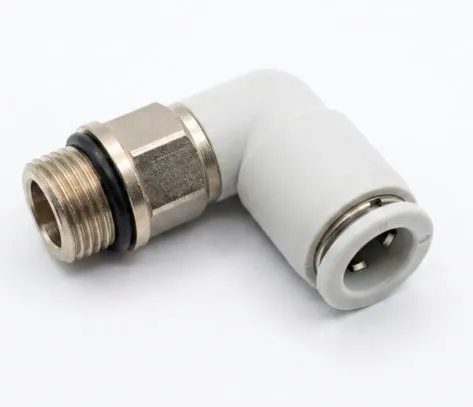

The PLG16-03 is an industrial, heavy-duty 90^\circ male elbow push-in pneumatic fitting engineered to adapt large 16 mm outer-diameter tubing to a \frac{3}{8} " BSPT threaded port. Designed to optimize high-volume airflow in tight or right-angle piping layouts, it prevents tube kinking and strain while enabling quick, tool-free push-to-connect assembly.
Featuring a reinforced internal stainless steel lock-claw mechanism alongside an ergonomic release collar, it creates a high-integrity, vibration-resistant, zero-leak seal without scoring or damaging the tubing surface. Its heavy-duty body incorporates external hexagonal wrench flats, ensuring easy spanner access and precise directional alignment when mounting into high-flow pneumatic cylinders, distribution manifolds, and control valve assemblies.
Feature | Specification |
|---|
Model Number | PLG16-03 |
Fitting Type | 90° Male Elbow One-Touch / Push-In Fitting |
Connection Type | Tube to Male Thread (90° Angle) |
Compatible Tubing O.D. | 16 mm |
Thread Size Designation | 03 (Equivalent to R \frac{3}{8}" / 3/8" BSPT Male Thread) |
Thread Type | Male BSPT (R / Tapered Thread) |
Compatible Tubing | Polyurethane (PU), Polyamide (Nylon/PA), Polyethylene (PE) |
Max. Operating Pressure | Up to 10 Bar (1.0 MPa / 150 PSI) |
Working Temperature Range | 0°C to +60°C |
Primary Media | Compressed Air, Vacuum |
