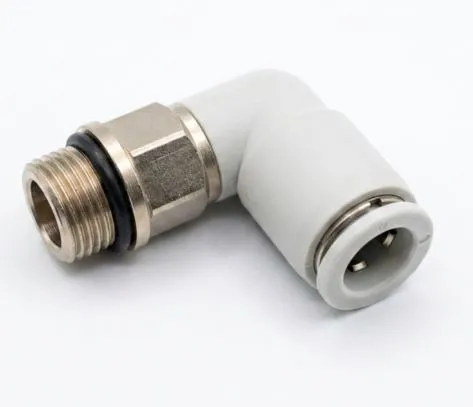

The PLG12-04 is a heavy-duty 90^\circ male elbow push-in pneumatic fitting designed to route large 12 mm outer-diameter tubing directly into a broad \frac{1}{2} " BSPT threaded port. Engineered for maximum airflow in right-angle configurations, it eliminates hose kinking and reduces mechanical stress in tight machinery enclosures while offering quick, tool-free assembly.
Equipped with a reinforced internal stainless steel lock-claw mechanism and an ergonomic release collar, this connector establishes a secure, vibration-resistant, zero-leak seal that preserves tube wall integrity. The body features integrated external hexagonal wrench flats, permitting smooth spanner adjustment and accurate directional positioning when installing into high-capacity air cylinders, main distribution manifolds, and heavy solenoid valve blocks.
Feature | Specification |
|---|
Model Number | PLG12-04 |
Fitting Type | 90° Male Elbow One-Touch / Push-In Fitting |
Connection Type | Tube to Male Thread (90° Angle) |
Compatible Tubing O.D. | 12 mm |
Thread Size Designation | 04 (Equivalent to R \frac{1}{2}" / 1/2" BSPT Male Thread) |
Thread Type | Male BSPT (R / Tapered Thread) |
Compatible Tubing | Polyurethane (PU), Polyamide (Nylon/PA), Polyethylene (PE) |
Max. Operating Pressure | Up to 10 Bar (1.0 MPa / 150 PSI) |
Working Temperature Range | 0°C to +60°C |
Primary Media | Compressed Air, Vacuum |
