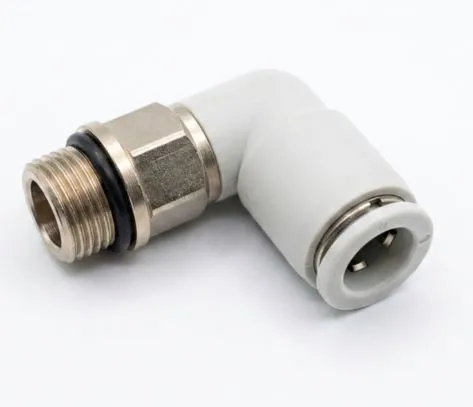

The PLG10-04 is a heavy-duty 90^\circ male elbow push-in pneumatic fitting designed to route 10 mm outer-diameter tubing into a larger \frac{1}{2} " BSPT threaded port. Ideal for high-flow right-angle connections, this fitting prevents tube kinking and strain in tight machinery spaces while delivering tool-free, instant assembly.
Equipped with a robust internal stainless steel lock-claw mechanism and an ergonomic release collar, it ensures a tight, vibration-resistant, zero-leak seal without damaging the inserted tube. The body features integrated hexagonal wrench flats, permitting smooth spanner adjustment and precise directional orientation when mounting into high-capacity air cylinders, distribution manifolds, and main control valve blocks.
Feature | Specification |
|---|
Model Number | PLG10-04 |
Fitting Type | 90° Male Elbow One-Touch / Push-In Fitting |
Connection Type | Tube to Male Thread (90° Angle) |
Compatible Tubing O.D. | 10 mm |
Thread Size Designation | 04 (Equivalent to R \frac{1}{2}" / 1/2" BSPT Male Thread) |
Thread Type | Male BSPT (R / Tapered Thread) |
Compatible Tubing | Polyurethane (PU), Polyamide (Nylon/PA), Polyethylene (PE) |
Max. Operating Pressure | Up to 10 Bar (1.0 MPa / 150 PSI) |
Working Temperature Range | 0°C to +60°C |
Primary Media | Compressed Air, Vacuum |
