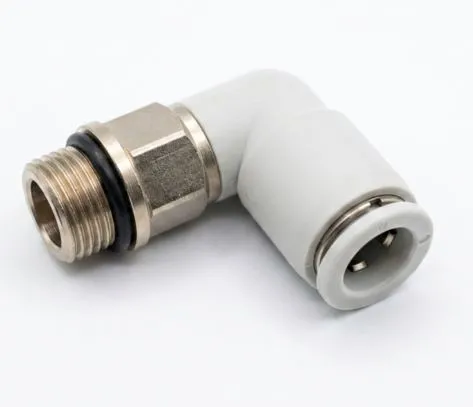

The PLG10-02 is a compact $90^\circ$ male elbow push-in pneumatic fitting engineered to connect 10 mm outer-diameter tubing to a $\frac{1}{4}$ " BSPT threaded port in tight or right-angle piping configurations. Designed for quick, tool-free tube assembly, it helps reduce pneumatic line clutter and minimizes hose kinking in dynamic industrial setups.
Featuring an internal stainless steel lock-claw gripping mechanism alongside a quick-release collar, it ensures a secure, vibration-resistant, zero-leak seal without damaging the inserted tube. The body is equipped with an integrated external hexagonal wrench flat to allow easy tightening and precise directional positioning during installation into valve blocks, air cylinders, and control manifolds.
Feature | Specification |
|---|
Model Number | PLG10-02 |
Fitting Type | 90° Male Elbow One-Touch / Push-In Fitting |
Connection Type | Tube to Male Thread (90° Angle) |
Compatible Tubing O.D. | 10 mm |
Thread Size Designation | 02 (Equivalent to R \frac{1}{4}" / 1/4" BSPT Male Thread) |
Thread Type | Male BSPT (R / Tapered Thread) |
Compatible Tubing | Polyurethane (PU), Polyamide (Nylon/PA), Polyethylene (PE) |
Max. Operating Pressure | Up to 10 Bar (1.0 MPa / 150 PSI) |
Working Temperature Range | 0°C to +60°C |
Primary Media | Compressed Air, Vacuum |
