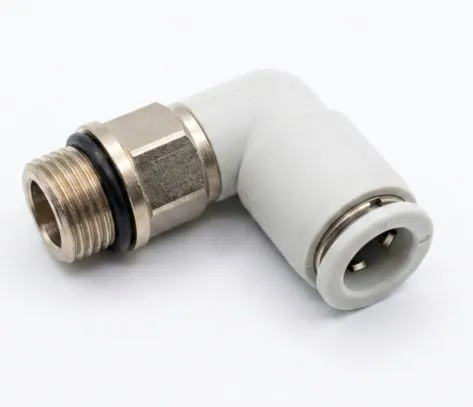

The PLG06-M5 is a ultra-compact plug-in male elbow fitting designed for space-critical pneumatic applications requiring a transition from a 6mm push-in port to a miniature metric thread. Featuring a 6mm plug-in stem on one side and an M5 metric male thread on the other, it plugs directly into standard 6mm push-in ports or manifolds to create a 90-degree connection to M5-ported components.
Built with high-grade nickel-plated brass threads and equipped with an integrated sealing O-ring on the M5 thread, the PLG06-M5 delivers an instant, leak-proof seal without requiring thread sealant tape—ideal for compact valve manifolds, miniature pneumatic cylinders, and precision automated machinery.
Specification | Technical Detail |
|---|
Model | PLG06-M5 / PLG6-M5 |
Fitting Type | Plug-in Male Elbow (Stem to Thread) |
Plug/Stem Size | 6 mm Stem |
Thread Connection | M5 Metric Male Thread (M5 x 0.8) with O-ring |
Body Material | Nickel-Plated Brass & Durable PBT Composite |
Release Sleeve / Collet | POM Resin / Metal Collet |
Internal Sealing | Nitrile Rubber (NBR) / NBR O-Ring |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 10 bar (0 to 145 PSI / 1.0 MPa) |
Operating Temperature | 0°C to +60°C (32°F to 140°F) |
Compatible Components | Standard 6mm Push-in Ports / M5 Ported Valves & Cylinders |
