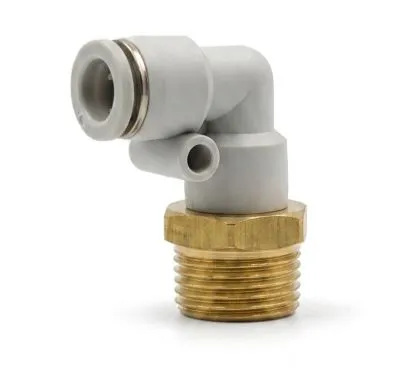

The PL5/16-3/8 Male Elbow Fitting is a 90-degree push-to-connect L-shaped adapter designed for clean right-angle connections between larger threaded ports and flexible pneumatic tubing. Built to connect a 5/16" outer diameter (5/16" O.D. / ~8mm) tube to a 3/8" male thread (NPT or BSPT/R), it eliminates tube stress and tight bending radiuses in pneumatic installations.
Featuring a 360-degree swiveling body design, the upper composite housing rotates independently of the threaded base to allow precise alignment during setup. It is constructed with a nickel-plated brass threaded portion, a durable PBT resin composite body, stainless steel internal lock claws, and pre-applied thread sealant (or NBR seal) for a fast, leak-free connection.
Property | Technical Specification |
|---|
Model Code | PL5/16-3/8 (PL 5/16-3/8 / PL 5/16-N03) |
Fitting Type | 90° Male Elbow Swivel Fitting (Push-In / One-Touch) |
Applicable Tube Outer Diameter (O.D.) | 5/16 Inch (~7.94 mm / 8 mm) |
Thread Size & Gender | 3/8" Male Thread (NPT / BSPT / R 3/8) |
Fluid Compatibility | Compressed Air, Industrial Vacuum, Inert Gas |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / ~145 PSI) |
Negative Pressure / Vacuum | -100 kPa (-29.5 inHg / -750 mmHg) |
Proof / Burst Pressure | 1.5 MPa (~215 PSI) |
Operating Temperature | 0°C to +60°C (32°F to 140°F) |
Applicable Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Body / Thread Material | PBT Composite Body & Nickel-Plated Brass Threads |
Locking Mechanism | Stainless Steel (SUS 304) Gripping Claws |
Seals | Pre-coated Thread Sealant & NBR O-Rings |
