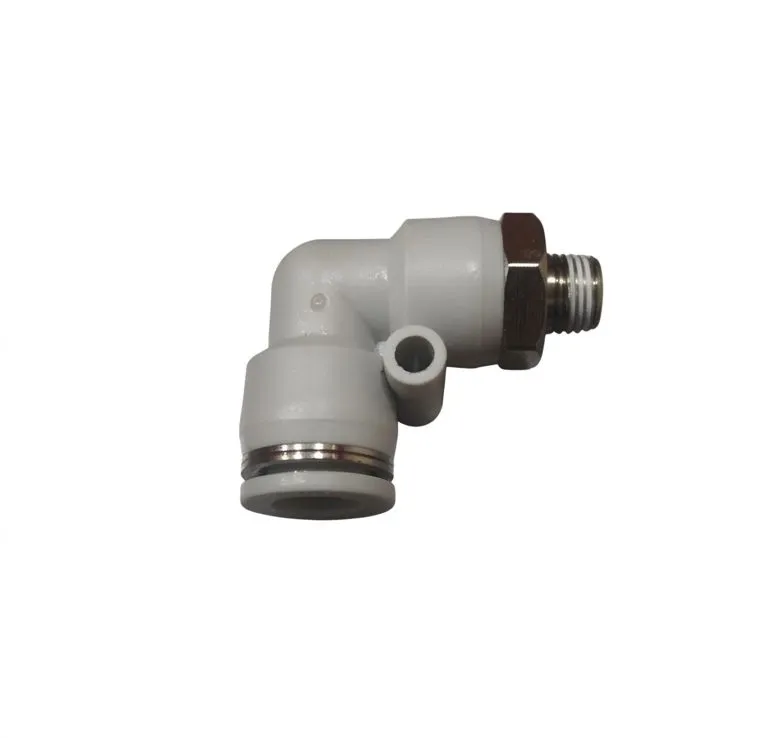

The AIRMIXS PL 3/8-1/8 is a premium-grade, 90-degree push-to-connect male elbow fitting engineered for reliable and efficient pneumatic routing. As shown in AIRMIXS PL-3 8- 1 8.png, this fitting features a clean white industrial composite body coupled with a durable nickel-plated brass base, providing a secure, leak-free connection for 3/8" outer diameter (OD) tubing.
Its space-saving elbow configuration allows for clean 90° transitions in tight spaces, while the integrated swivel mechanism ensures the body can be rotated 360 degrees after installation to achieve perfect alignment. Ideal for industrial automation, packaging systems, and pneumatic machinery, it ensures optimal flow efficiency and hassle-free system maintenance.
Specification | Technical Data |
|---|
Model Number | PL 3/8-1/8 |
Fitting Type | 90° Male Elbow (Swivel Type) |
Port A (Tube Connection) | 3/8" Tube OD |
Port B (Thread Connection) | 1/8" NPT / PT (Male Thread) |
Body Material | Industrial Polymer Composite (White) |
Thread Base Material | Nickel-Plated Brass |
Applicable Tubing Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Working Fluid | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Negative Pressure Range | -29.5 in Hg (-100 kPa) |
Operating Temperature Range | 32°F to 140°F / 0°C to 60°C |
