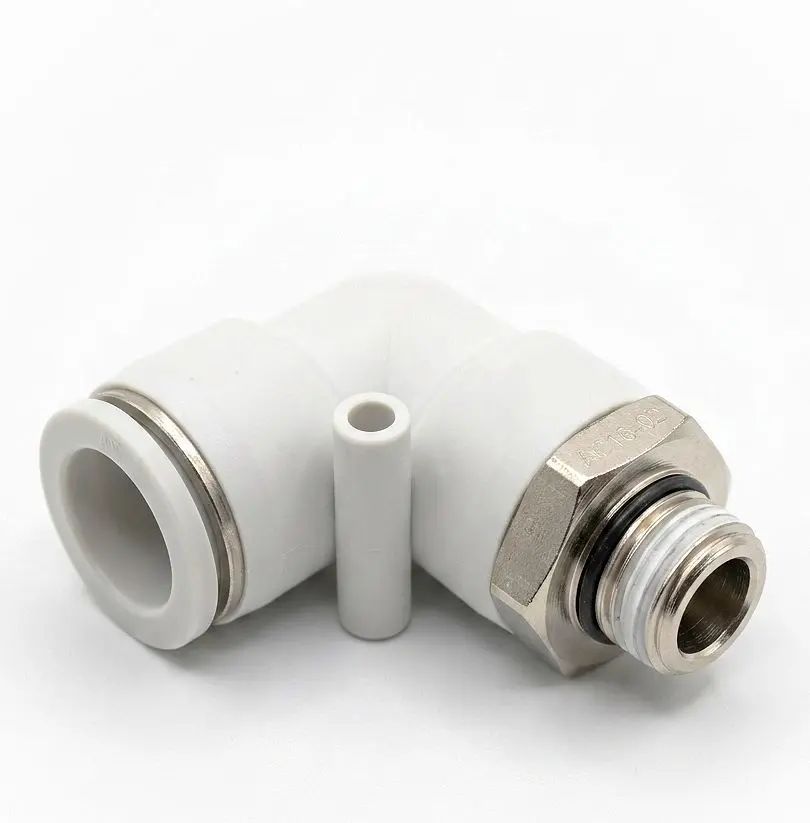

The AIRMIXS PL16-02 is an industrial-grade 90-degree swivel male elbow designed for high-capacity pneumatic routing. It facilitates a rapid, tool-free connection between 16mm O.D. tubing and a 1/4" BSPT female port.
This fitting features a precision swivel mechanism that allows the resin body to rotate 360 degrees even after the threaded base is securely tightened. This design provides essential flexibility for aligning large-diameter tubing in restricted spaces or complex machinery layouts. Constructed with premium PBT and nickel-plated brass, it is engineered to handle standard industrial pressures while maintaining a long service life in demanding environments. It is widely utilized in heavy-duty automation, primary air distribution manifolds, and large-scale manufacturing systems.
Feature | Specification |
|---|
Model Number | PL16-02 |
Tube Outer Diameter (O.D.) | 16 mm |
Thread Size | 1/4" BSPT (R1/4) |
Shape | 90° Swivel Male Elbow |
Fluid Type | Compressed Air, Vacuum, Water (no freezing) |
Operating Pressure | 0 to 1.0 MPa (0 to 150 psi) |
Negative Pressure | -100 kPa (-29.5 in Hg) |
Proof Pressure | 1.5 MPa (217 psi) |
Temperature Range | 0 to 60°C (32 to 140°F) |
