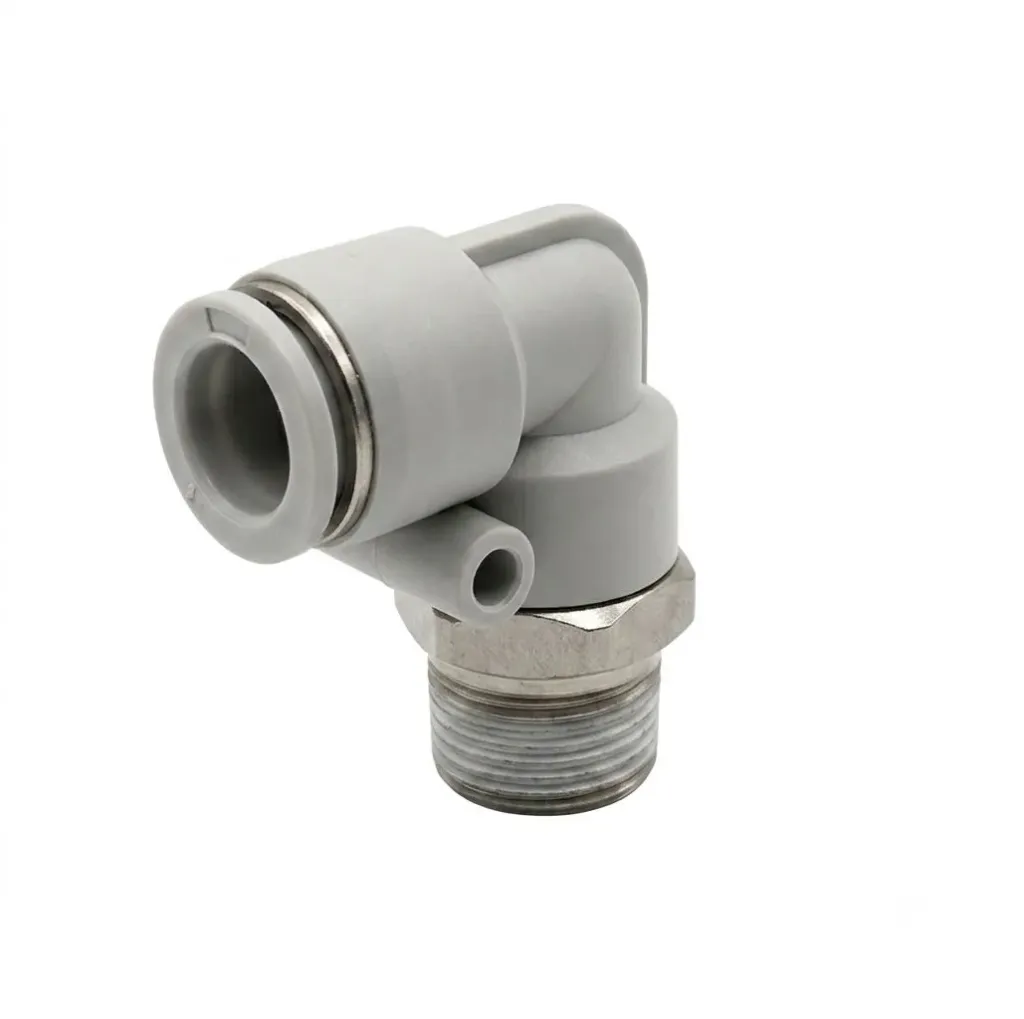

The PL1/4-1/4 is a standard 90° male elbow push-to-connect pneumatic fitting engineered for quick, secure, and space-saving connections in compressed air and vacuum systems. Featuring a 1/4" push-in tube inlet on one side and a 1/4" male thread on the other, its right-angle configuration enables clean tubing routing in tight spaces without bending or kinking the hose. The ergonomic release ring provides fast, tool-free tube insertion and effortless removal.
Technical Specification | Parameter / Value |
|---|
Model Number | PL1/4-1/4 |
Fitting Type | 90° Male Elbow / Push-in Swivel Fitting |
Tube OD (A Port) | 1/4 Inch (6.35 mm) |
Thread Size (B Port) | 1/4 Inch NPT / Male Thread |
Fluid Media | Compressed Air, Vacuum |
Working Pressure Range | 0 to 150 PSI (0 to 1.0 MPa / 10 bar) |
Proof Pressure | Up to 435 PSI (3.0 MPa) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Sealing Method | Pre-coated Thread Sealant / O-ring Seal |
