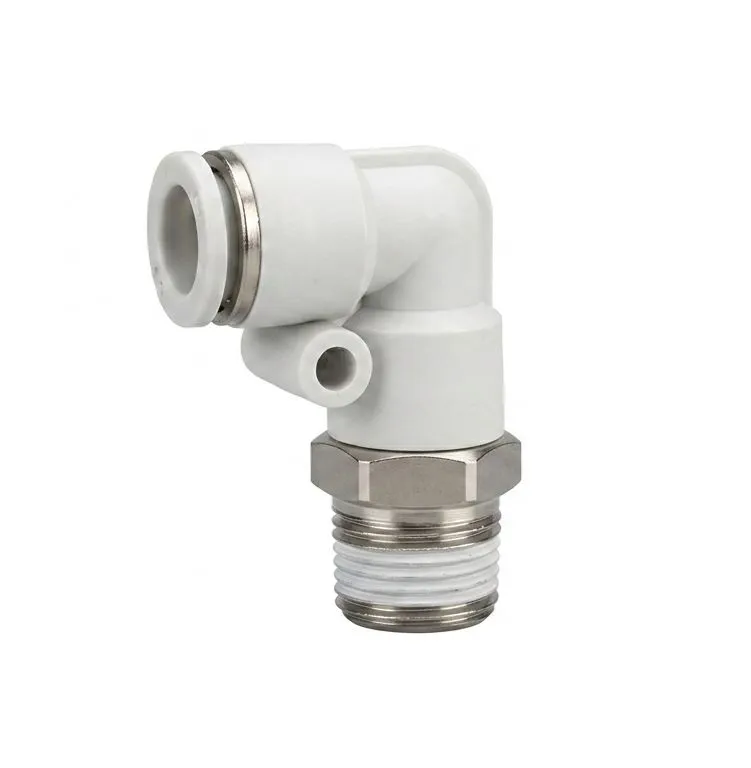

The AIRMIXS PL 1/4-1/2 is a premium-grade, 90-degree push-to-connect male elbow fitting engineered for reliable pneumatic routing. Featuring a clean white industrial composite body and a durable nickel-plated brass base, this fitting provides a secure, leak-free connection for polyurethane, nylon, and polyethylene tubing.
Its space-saving elbow configuration allows for clean 90° turns, while the integrated swivel mechanism ensures the body can be rotated after installation for perfect alignment. Perfect for industrial automation, packaging machinery, and textile manufacturing, it ensures optimal flow efficiency and hassle-free maintenance.
Specification | Technical Data |
|---|
Model Number | PL 1/4-1/2 |
Fitting Type | 90° Male Elbow (Swivel) |
Port A (Tube Connection) | 1/4" Tube OD |
Port B (Thread Connection) | 1/2" NPT / PT (Male) |
Body Material | Industrial Composite (White) |
Thread Material | Nickel-Plated Brass |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Working Medium | Vacuum, Compressed Air |
Operating Pressure Range | 0 to 150 PSI (0 to 9.9 kgf/cm²) |
Negative Pressure (Vacuum) | -29.5 in Hg (-750 mmHg) |
Operating Temperature Range | 32°F to 140°F / 0°C to 60°C |
