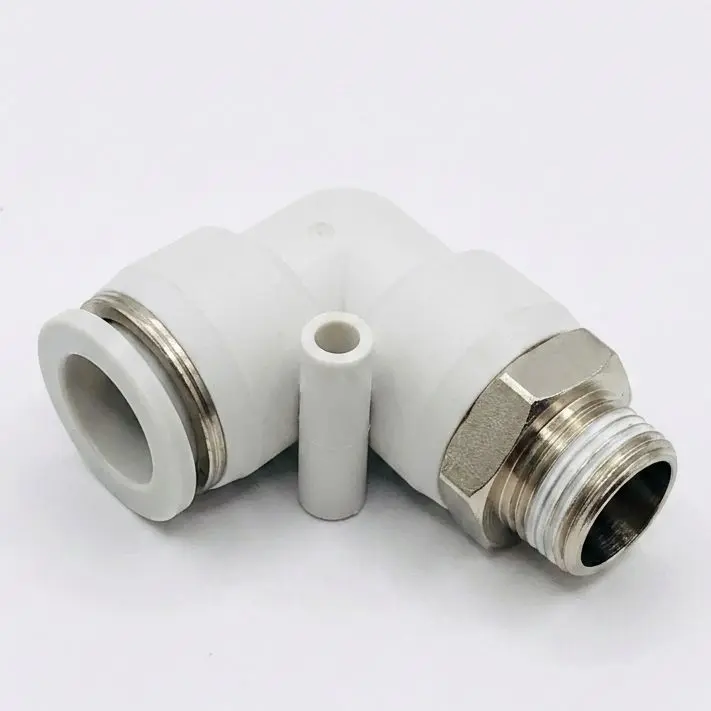

The AIRMIXS PL14-03 is a heavy-duty 90-degree swivel male elbow designed for high-flow pneumatic routing in industrial environments. It facilitates a rapid, tool-free connection between 14mm O.D. tubing and a 3/8" BSPT female port.
This fitting features a specialized swivel mechanism that allows the resin body to rotate 360 degrees even after the threaded base is securely tightened. This design provides maximum flexibility for tube alignment in restricted or complex machinery layouts. Constructed with premium PBT and nickel-plated brass, it is engineered to handle standard industrial pressures while maintaining a long service life. It is widely utilized in large-scale automation, primary air distribution, and heavy machinery systems.
Feature | Specification |
|---|
Model Number | PL14-03 |
Tube Outer Diameter (O.D.) | 14 mm |
Thread Size | 3/8" BSPT (R3/8) |
Shape | 90° Swivel Male Elbow |
Fluid Type | Compressed Air, Vacuum, Water (no freezing) |
Operating Pressure | 0 to 1.0 MPa (0 to 150 psi) |
Negative Pressure | -100 kPa (-29.5 in Hg) |
Proof Pressure | 1.5 MPa (217 psi) |
Temperature Range | 0 to 60°C (32 to 140°F) |
