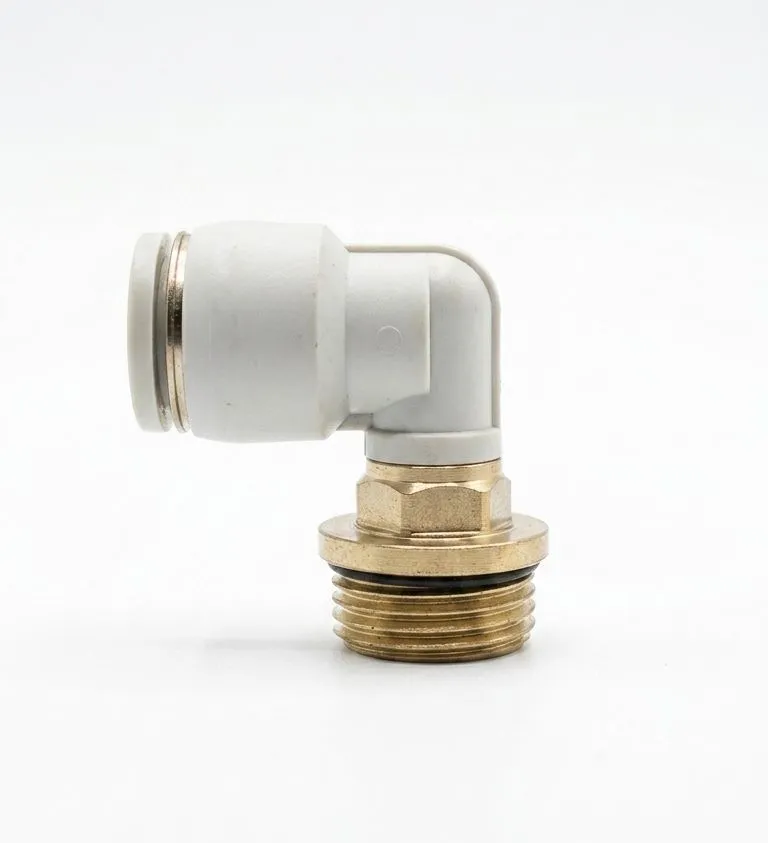

The AIRMIXS PL12-G04 is a heavy-duty, industrial-grade pneumatic 90-degree swivel elbow fitting engineered for seamless connection of large-capacity air lines. It incorporates a highly reliable push-to-connect mechanism that locks standard tubing instantly and creates a robust, high-pressure seal without requiring tools. Designed for rugged applications, this model pairs strong nickel-plated brass threads with a wider G1/2" connection and a pre-installed rubber O-ring to guarantee completely leak-free performance under intensive air distribution workflows.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL12-G04 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 12 mm |
Thread Connection Size | G 1/2" (BSPP Parallel Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon |
Materials of Construction | Nickel-Plated Brass, PBT Plastic, Stainless Steel Claws |
