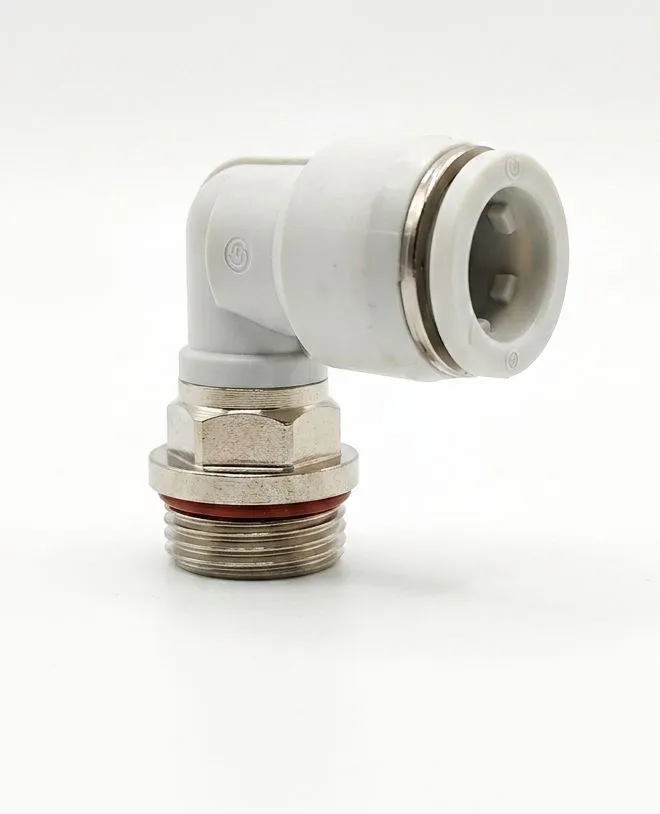

The AIRMIXS PL 12-G03 is an industrial-grade, 90-degree push-to-connect male elbow fitting designed for reliable and leak-free performance in metric pneumatic networks. As visible in AIRMIXS PL 12-G03.jpg, this component features a clean white engineering composite body paired with a durable nickel-plated brass base. It is engineered to establish an instantaneous connection for 12mm outer diameter (OD) pneumatic tubing.
Equipped with a parallel G 3/8" thread and an integrated premium rubber O-ring, this fitting ensures a perfect face-seal connection without requiring any additional thread tape. Its space-saving right-angle layout allows for clean routing in confined spaces, while the integrated 360-degree swivel mechanism lets you orient the elbow freely after installation to optimize your tubing layout and eliminate line stress.
Specification | Technical Data |
|---|
Model Number | PL 12-G03 |
Fitting Type | 90° Male Elbow (Swivel Type) |
Port A (Tube Connection) | 12mm Tube OD |
Port B (Thread Connection) | 3/8" G / BSPP (Parallel Male Thread) |
Seal Type | Integrated O-Ring Face Seal |
Body Material | Industrial Polymer Composite (White) |
Thread Base Material | Nickel-Plated Brass |
Applicable Tubing Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Working Fluid | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Negative Pressure Range | -29.5 in Hg (-100 kPa) |
Operating Temperature Range | 32°F to 140°F / 0°C to 60°C |
