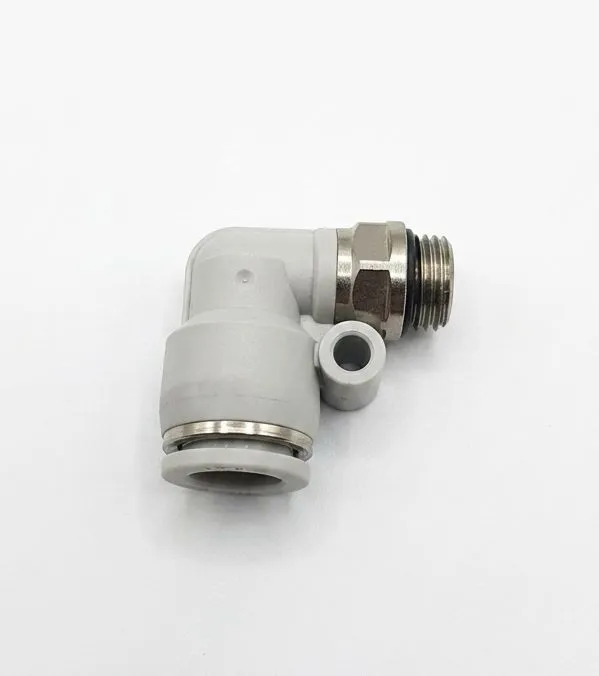

The AIRMIXS PL 12-G02 is an industrial-grade, 90-degree push-to-connect male elbow fitting engineered for reliable, leak-proof routing within metric pneumatic systems. As shown in AIRMIXS PL 12-G02.jpg, this precision component features a robust grey engineering composite body paired with a heavy-duty nickel-plated brass base. It is designed to establish instantaneous connections for 12mm outer diameter (OD) pneumatic tubing.
Equipped with a parallel G 1/4" thread and an integrated premium nitrile rubber O-ring, this fitting ensures a perfect face-seal connection that eliminates the need for Teflon tape or liquid sealants. Its space-saving right-angle layout allows for clean transitions in confined footprints, while the integrated 360-degree swivel mechanism permits free orientation of the body post-installation to optimize tubing layout and minimize line stress.
Specification | Technical Data |
|---|
Model Number | PL 12-G02 |
Fitting Type | 90° Male Elbow (Swivel Type) |
Port A (Tube Connection) | 12mm Tube OD |
Port B (Thread Connection) | 1/4" G / BSPP (Parallel Male Thread) |
Seal Type | Integrated O-Ring Face Seal |
Body Material | Industrial Polymer Composite (Grey) |
Thread Base Material | Nickel-Plated Brass |
Applicable Tubing Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Working Fluid | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Negative Pressure Range | -29.5 in Hg (-100 kPa) |
Operating Temperature Range | 32°F to 140°F / 0°C to 60°C |
