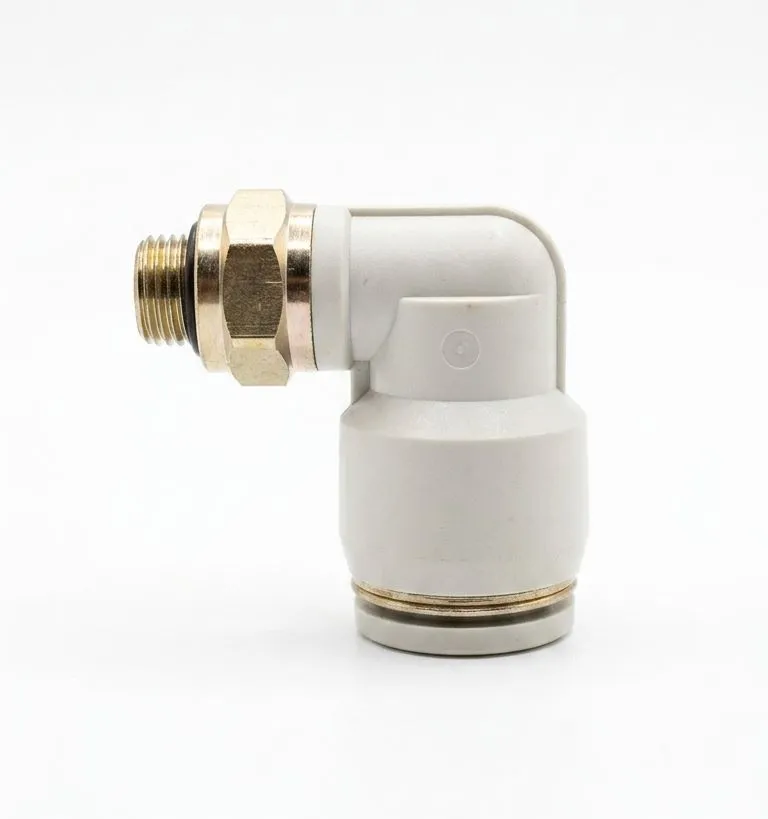

The AIRMIXS PL12-G01is a high-performance, industrial-grade pneumatic 90-degree swivel elbow fitting designed for effortless connection of air lines.It features a user-friendly push-to-connect mechanism that forms an immediate, high-pressure seal on standard tubing without the need for tools.Built to survive harsh manufacturing environments, the fitting combines robust nickel-plated brass components with an integrated O-ring on the parallel G-thread to guarantee completely leak-free air distribution.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL12-G01 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 12 mm |
Thread Connection Size | G 1/8" (BSPP Parallel Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon |
Materials of Construction | Nickel-Plated Brass, PBT Plastic, Stainless Steel Claws |
