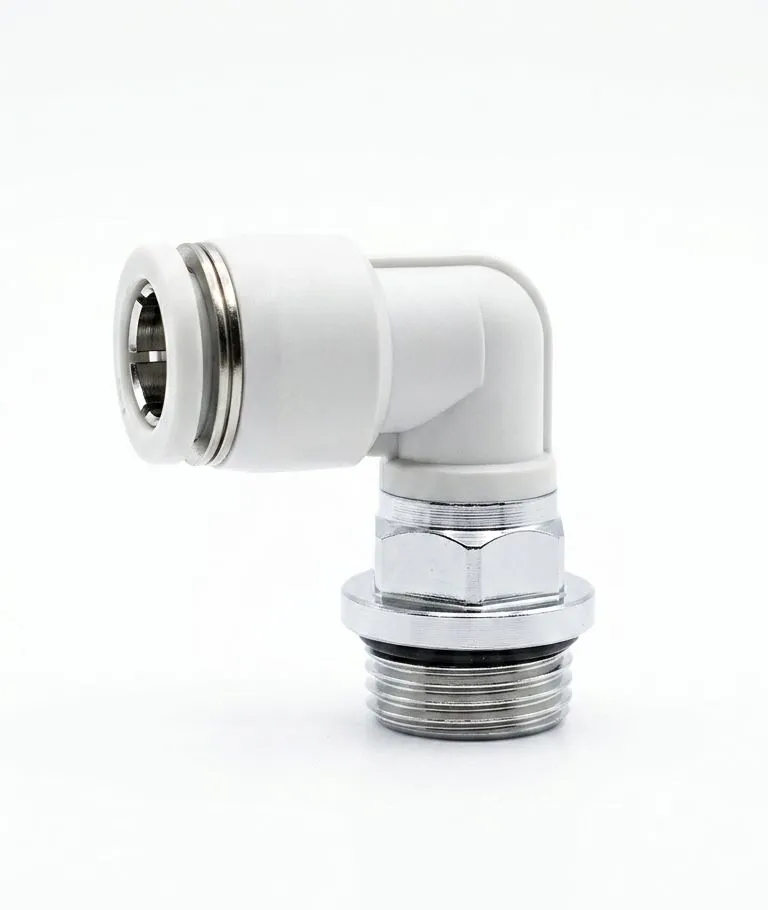

PL10-G03 AIRMIXS Pneumatic Push-in Male Elbow Fitting

The AIRMIXS PL10-G03 is a high-performance, heavy-duty pneumatic 90-degree swivel elbow fitting engineered for secure and efficient high-flow air line connections. Outfitted with an integrated one-touch push-to-connect sleeve, it allows for instant, tool-free installation of mid-sized 10mm outer diameter tubing while establishing an exceptionally reliable seal under pressure. This model features a sleek, rugged white composite body paired with a mid-sized chrome/nickel-plated brass connection base. Equipped with a parallel G3/8" thread and a pre-installed rubber O-ring gasket, it delivers absolute leak protection straight out of the box without requiring messy Teflon tape, making it ideal for industrial manifolds, automated packaging machinery, and heavy-duty pneumatic control panels.

Technical Parameter

Specification

Brand

AIRMIXS

Model Number

PL10-G03

Fitting Type

90° Male Swivel Elbow

Tube Outer Diameter (OD)

10 mm

Thread Connection Size

G 3/8" (BSPP Parallel Thread)

Thread Sealing

Integrated Nitrile Rubber (NBR) O-Ring

Fluid Media

Compressed Air, Vacuum (Water permitted conditionally)

Operating Pressure Range

0 to 1.0 MPa (0 to 150 PSI)

Maximum Surge Pressure

1.32 MPa

Operating Temperature

0°C to 60°C (32°F to 140°F)

Applicable Tubing

Polyurethane (PU), Nylon, Polyethylene (PE)

Materials of Construction

Chrome/Nickel-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws

8.00 ⃁ 8.00 ⃁
