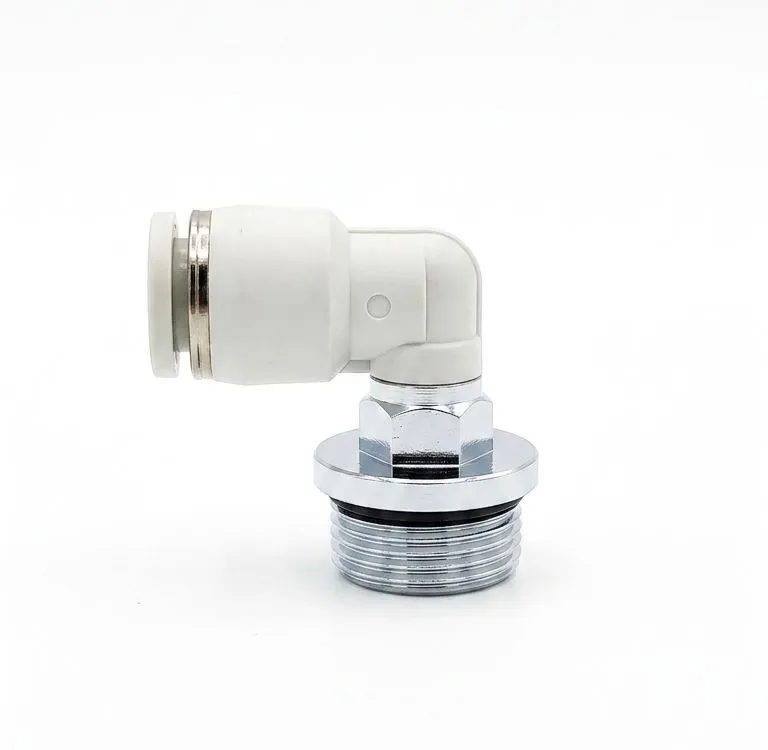

The AIRMIXS PL08-G03 is a high-performance, mid-capacity pneumatic 90-degree swivel elbow fitting engineered for seamless connection of industrial air lines. Outfitted with an integrated one-touch push-to-connect sleeve, it allows for instant, tool-free installation of standard 8mm outer diameter tubing while establishing a reliable, high-pressure seal. This model features a rugged white composite body paired with a wider, high-shine chrome/nickel-plated brass connection base. Equipped with a parallel G3/8" thread and a pre-installed rubber O-ring gasket, it provides absolute leak protection straight out of the box without requiring messy Teflon tape, making it ideal for standard industrial manifolds, automated assembly equipment, and pneumatic control systems.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL08-G03 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 8 mm |
Thread Connection Size | G 3/8" (BSPP Parallel Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Materials of Construction | Chrome/Nickel-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws |
