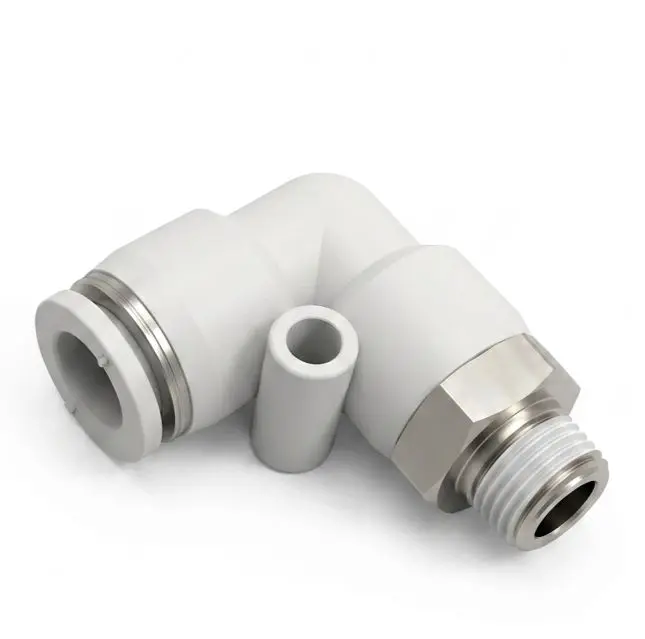

The AIRMIXS PL08-01 is a high-performance 90-degree swivel male elbow designed for efficient pneumatic routing in medium-scale industrial systems. It facilitates a rapid, tool-free connection between 8mm O.D. tubing and a 1/8" BSPT female port.
The swivel mechanism allows the PBT body to rotate 360 degrees after the threaded base is installed, providing exceptional flexibility for tube routing in cramped industrial environments. Combining high-strength thermoplastic with nickel-plated brass components, this fitting is engineered for longevity and reliable performance under standard industrial pressures. It is an ideal choice for automotive manufacturing, pneumatic control panels, and automated packaging systems.
Feature | Specification |
|---|
Model Number | PL08-01 |
Tube Outer Diameter (O.D.) | 8 mm |
Thread Size | 1/8" BSPT (R1/8) |
Shape | 90° Right Angle Elbow |
Fluid Type | Compressed Air, Vacuum, Water (no freezing) |
Operating Pressure | 0 to 1.0 MPa (0 to 150 psi) |
Negative Pressure | -100 kPa (-29.5 in Hg) |
Proof Pressure | 1.5 MPa (217 psi) |
Temperature Range | 0 to 60°C (32 to 140°F) |
