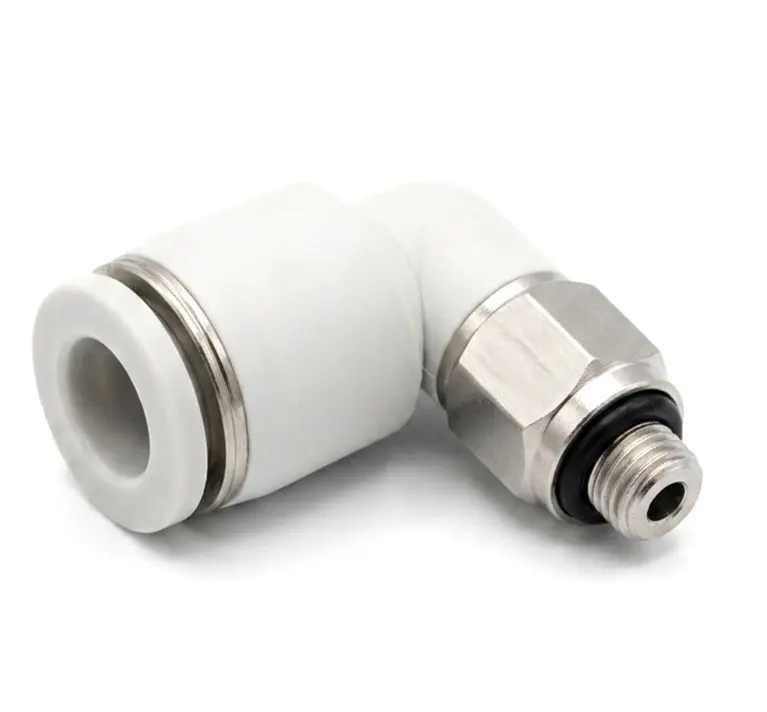

The AIRMIXS PL06-M5 is a micro-series 90-degree swivel male elbow designed for precision pneumatic applications where space is at a premium. It provides a quick, tool-free connection between 6mm O.D. tubing and a standard M5 metric port.
This fitting features a 360-degree swivel body, allowing for perfect tube orientation even after the threaded base has been fully tightened. The M5 threaded portion is equipped with a high-quality NBR O-ring, ensuring an airtight seal against the port face without the need for additional sealants. Constructed with PBT and nickel-plated brass, it is engineered for reliability in robotics, medical equipment, and compact automated machinery.
Feature | Specification |
|---|
Model Number | PL06-M5 |
Tube Outer Diameter (O.D.) | 6 mm |
Thread Size | M5 x 0.8 Metric |
Shape | 90° Right Angle Elbow |
Fluid Type | Compressed Air, Vacuum, Water (no freezing) |
Operating Pressure | 0 to 1.0 MPa (0 to 150 psi) |
Negative Pressure | -100 kPa (-29.5 in Hg) |
Proof Pressure | 3.0 MPa (435 psi) |
Temperature Range | 0 to 60°C (32 to 140°F) |
