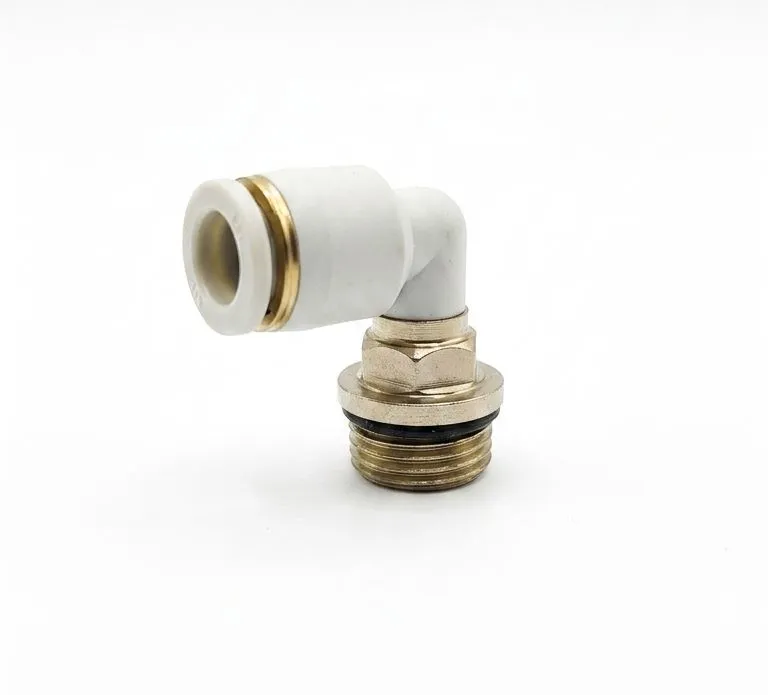

The AIRMIXS PL06-G01 is a highly efficient, compact pneumatic 90-degree swivel elbow fitting engineered for reliable and precise air line connections. Featuring a quick-releasing push-to-connect collar, it allows for instant, tool-free installation of standard 6mm tubing while ensuring a tight, high-pressure seal. This model pairs a lightweight, durable composite body with a nickel/chrome-plated brass thread structure. Equipped with a pre-installed rubber O-ring gasket on its parallel G-thread, it guarantees a 100% leak-free performance without the hassle of manual Teflon tape wrapping, making it excellent for compact automated systems and control panels.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL06-G01 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 6 mm |
Thread Connection Size | G 1/8" (BSPP Parallel Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Materials of Construction | Nickel/Chrome-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws |
