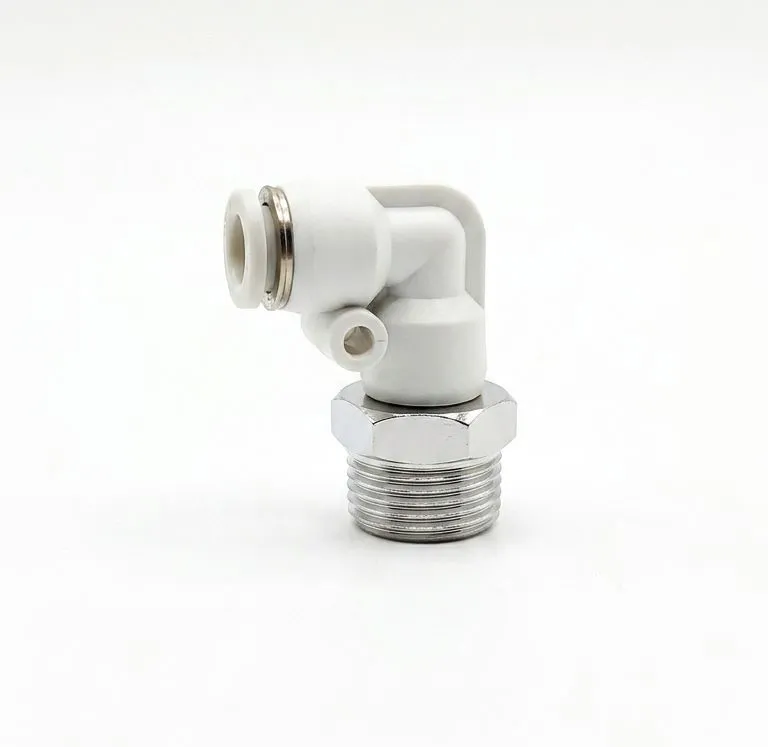

The AIRMIXS PL06-03 is a compact, high-grade pneumatic 90-degree swivel elbow fitting engineered for reliable, space-efficient air line installations. Featuring an intuitive push-to-connect collar, it allows for instant, tool-free connection of standard 6mm outer diameter tubing while maintaining a completely airtight, high-pressure seal. This model utilizes a rugged, lightweight composite body paired with a strong chrome-plated/nickel-plated brass thread structure. Equipped with a standard R3/8" (PT3/8") tapered thread, it delivers robust holding power and seamless connection scaling for automated machinery, robotics, and industrial pneumatic control systems.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL06-03 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 6 mm |
Thread Connection Size | R 3/8" / PT 3/8" (BSPT Tapered Thread) |
Thread Sealing | Requires standard Teflon (PTFE) tape or liquid sealant |
Fluid Media | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Materials of Construction | Chrome/Nickel-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws |
