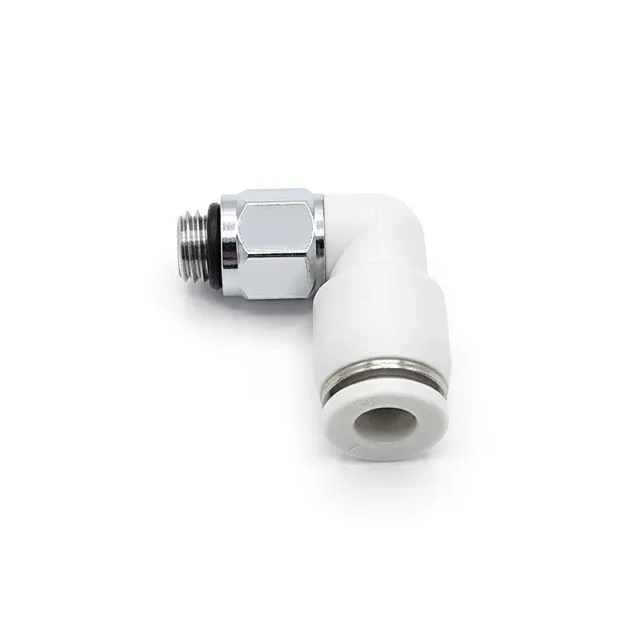

The AIRMIXS PL04-M6 is an ultra-compact, premium pneumatic 90-degree swivel elbow fitting engineered for miniature air line systems and high-precision machinery. Outfitted with an integrated miniature push-to-connect sleeve, it allows for instant, tool-free connection of standard 4mm outer diameter tubing while maintaining an exceptionally secure, high-pressure seal. This micro-sized model features a sleek, durable white composite body paired with a high-shine chrome/nickel-plated brass connection base. Equipped with a standard metric M6 thread and a pre-installed rubber O-ring gasket, it provides absolute leak protection straight out of the box in highly confined spaces, making it ideal for micro-robotics, customized automation, medical devices, and intricate pneumatic setups.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL04-M6 |
Fitting Type | 90° Miniature Male Swivel Elbow |
Tube Outer Diameter (OD) | 4 mm |
Thread Connection Size | M6 × 1.0 mm (Metric Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Materials of Construction | Chrome/Nickel-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws |
