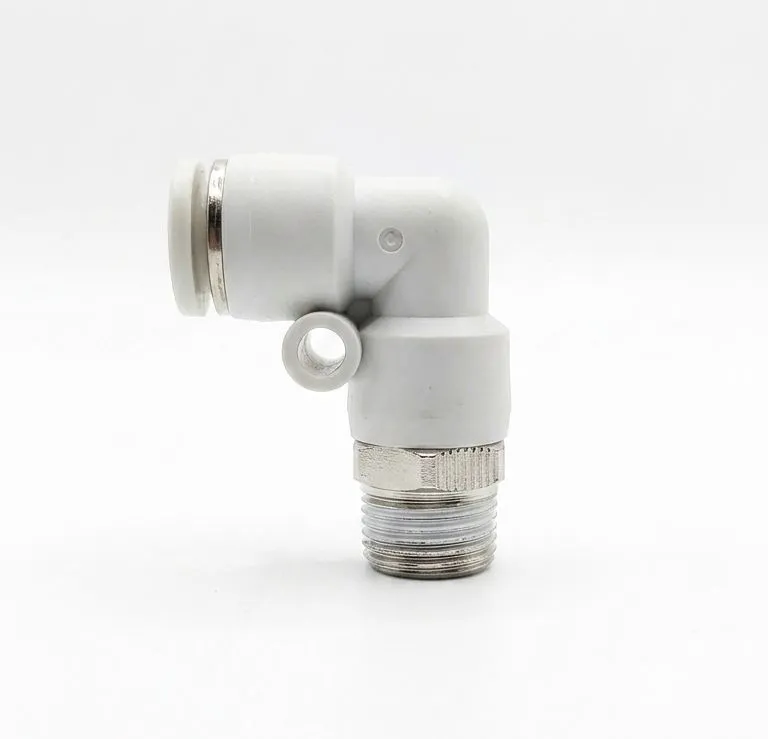

The PL04-02 Male Elbow Connector is a $90^\circ$ push-to-connect pneumatic fitting engineered to connect a 4mm outer diameter (OD) tube to a 1/4" BSPT (R 1/4) female threaded port. Ideal for tight spatial configurations, it features a $360^\circ$ swivel body design that allows optimal positioning of the tubing line after installation. Its one-touch release collar ensures secure hose retention and quick, tool-free disconnects, making it suitable for compressed air lines, pneumatic controls, and industrial automation systems.
Specification | Value |
|---|
Model | PL04-02 (or PL4-02) |
Fitting Type | $90^\circ$ Male Elbow / Swivel Push-In Fitting |
Applicable Tube Outer Diameter (OD) | $4\text{ mm}$ |
Thread Size & Type | 1/4" BSPT (R 1/4 Male Tapered Thread) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | $0 \text{ to } 1.0\text{ MPa}$ ($0 \text{ to } 10\text{ bar}$ / $\sim145\text{ PSI}$) |
Negative Pressure / Vacuum | $-100\text{ kPa}$ ($-29.5\text{ inHg}$ / $-750\text{ mmHg}$) |
Operating Temperature | $0^\circ\text{C} \text{ to } 60^\circ\text{C}$ ($32^\circ\text{F} \text{ to } 140^\circ\text{F}$) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Connection Method | One-Touch Push-In (Tube Side) / Threaded (Port Side) |
