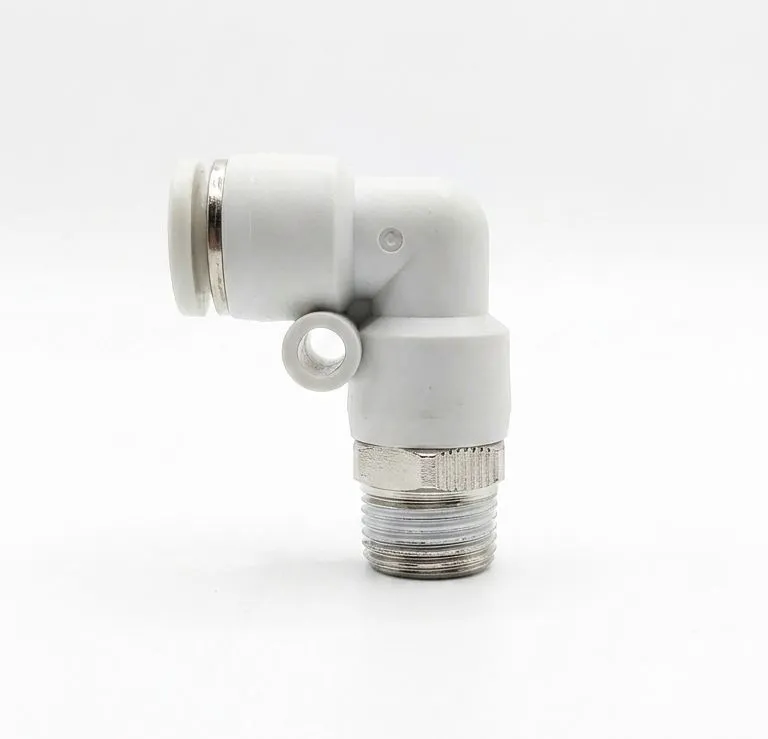

The PL04-01 Male Elbow Connector is a compact 90^\circ push-to-connect pneumatic fitting designed to link a 4mm outer diameter (OD) tube to a 1/8" BSPT (R 1/8) female threaded port. Engineered for tight spaces and efficient routing, it features a 360^\circ swivel body that allows convenient positioning of the tubing angle after installation. The one-touch release collar ensures fast, tool-free tube insertion and easy removal, making it an ideal choice for pneumatic control circuits, automation systems, and compact compressed air setups.
Specification | Value |
|---|
Model | PL04-01 (or PL4-01) |
Fitting Type | 90^\circMale Elbow / Swivel Push-In Fitting |
Applicable Tube Outer Diameter (OD) | 4\text{ mm}$ |
Thread Size & Type | 1/8" BSPT (R 1/8 Male Tapered Thread) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 \text{ to } 1.0\text{ MPa}(0 \text{ to } 10\text{ bar}/ $\sim145\text{ PSI}) |
Negative Pressure / Vacuum | 100\text{ kPa}(29.5\text{ inHg}/ -750\text{ mmHg}) |
Operating Temperature | 0^\circ\text{C} \text{ to } 60^\circ\text{C}(32^\circ\text{F} \text{ to } 140^\circ\text{F}) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Connection Method | One-Touch Push-In (Tube Side) / Threaded (Port Side) |
